LCZD-1025
| Availability: | |
|---|---|
| Quantity: | |
1.100% OEM Direct Replacement:

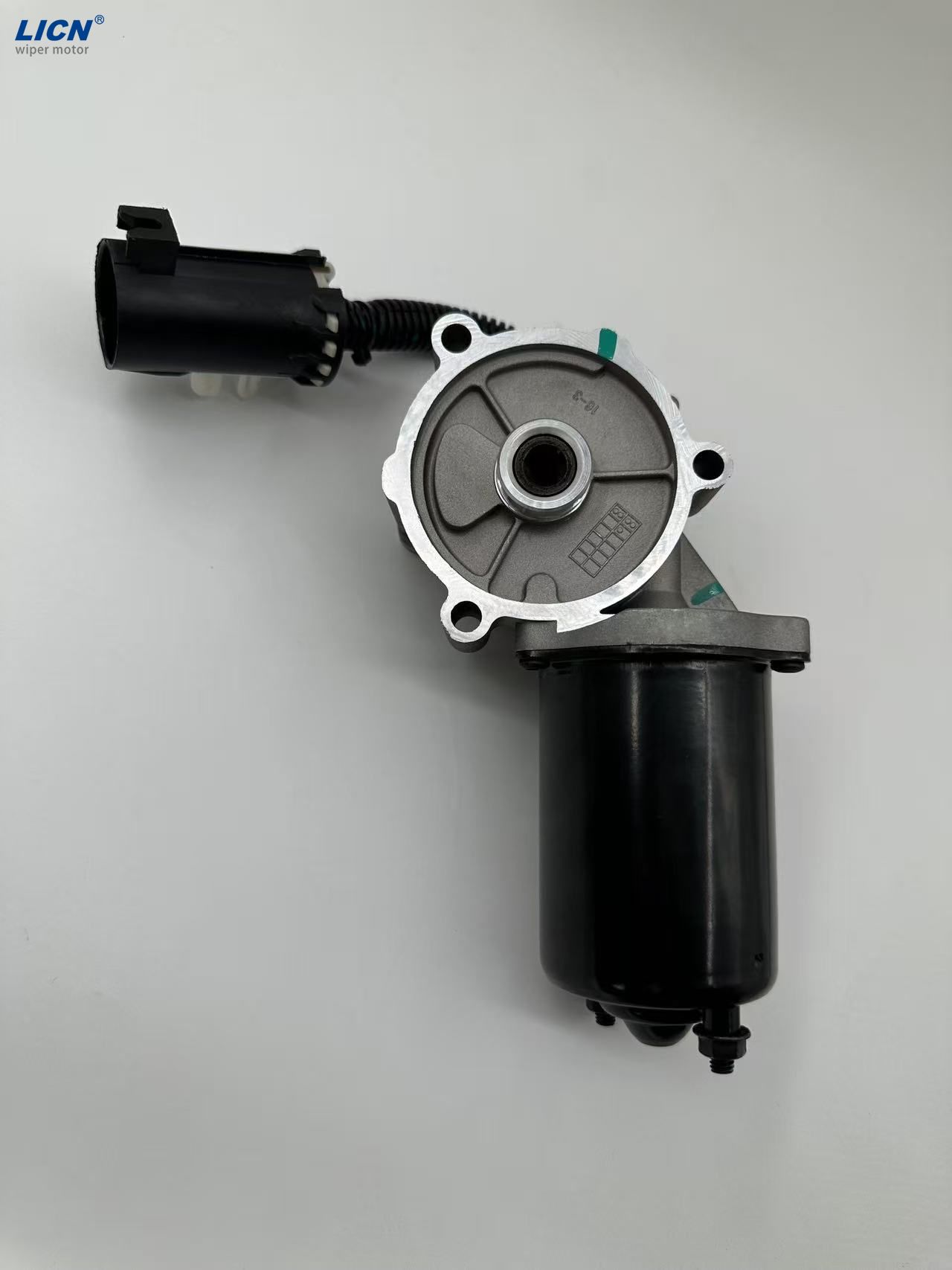

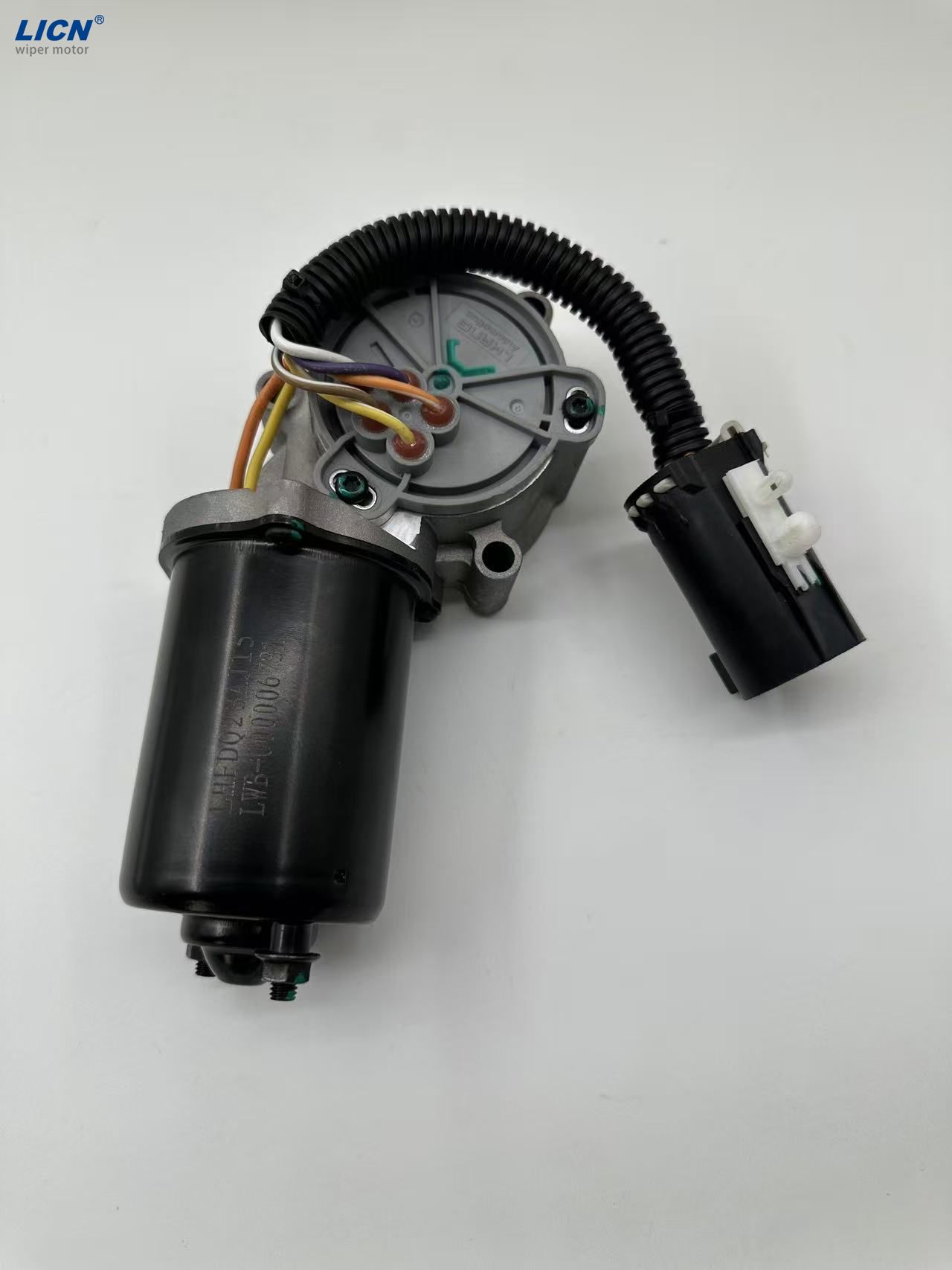

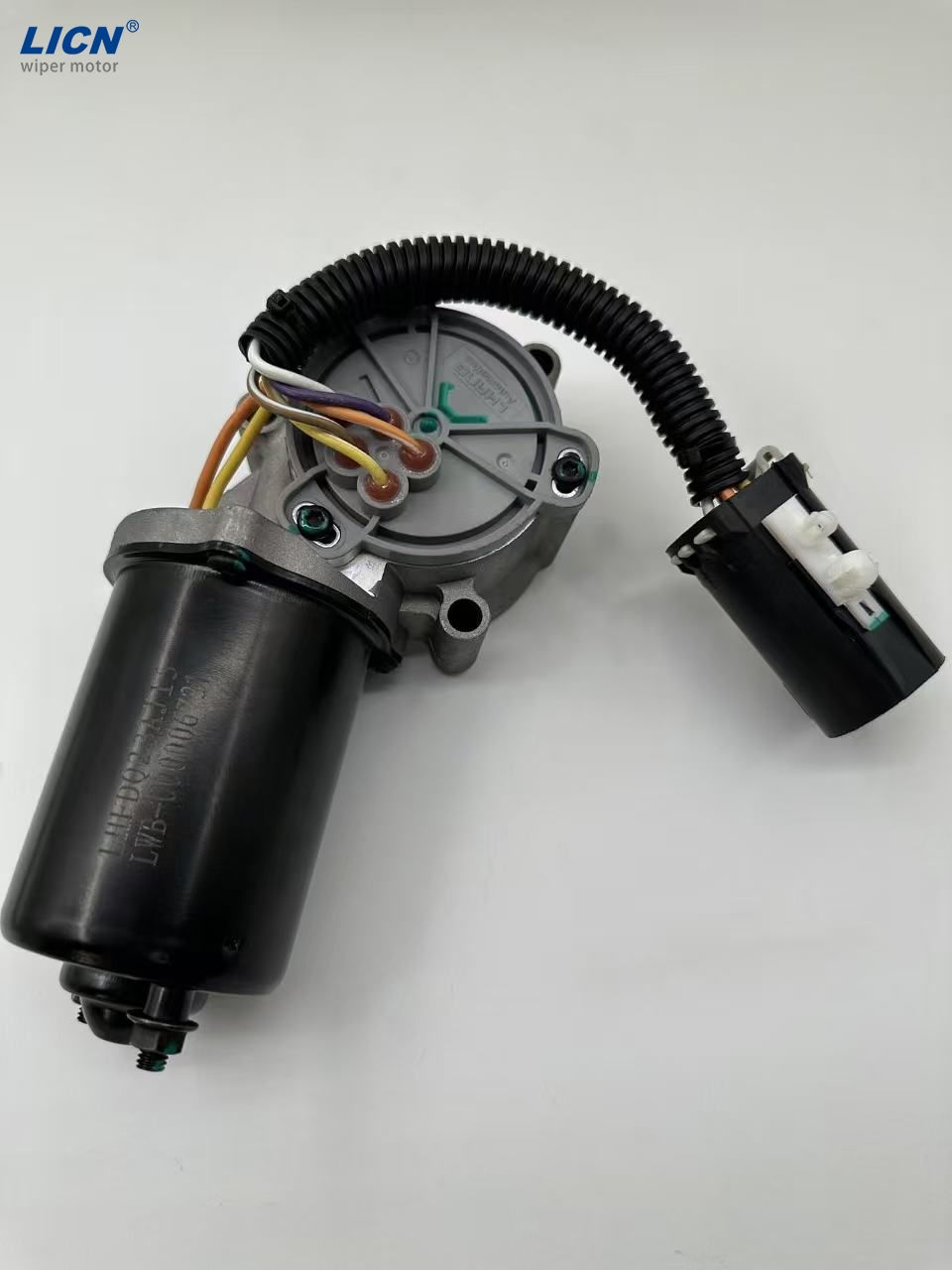

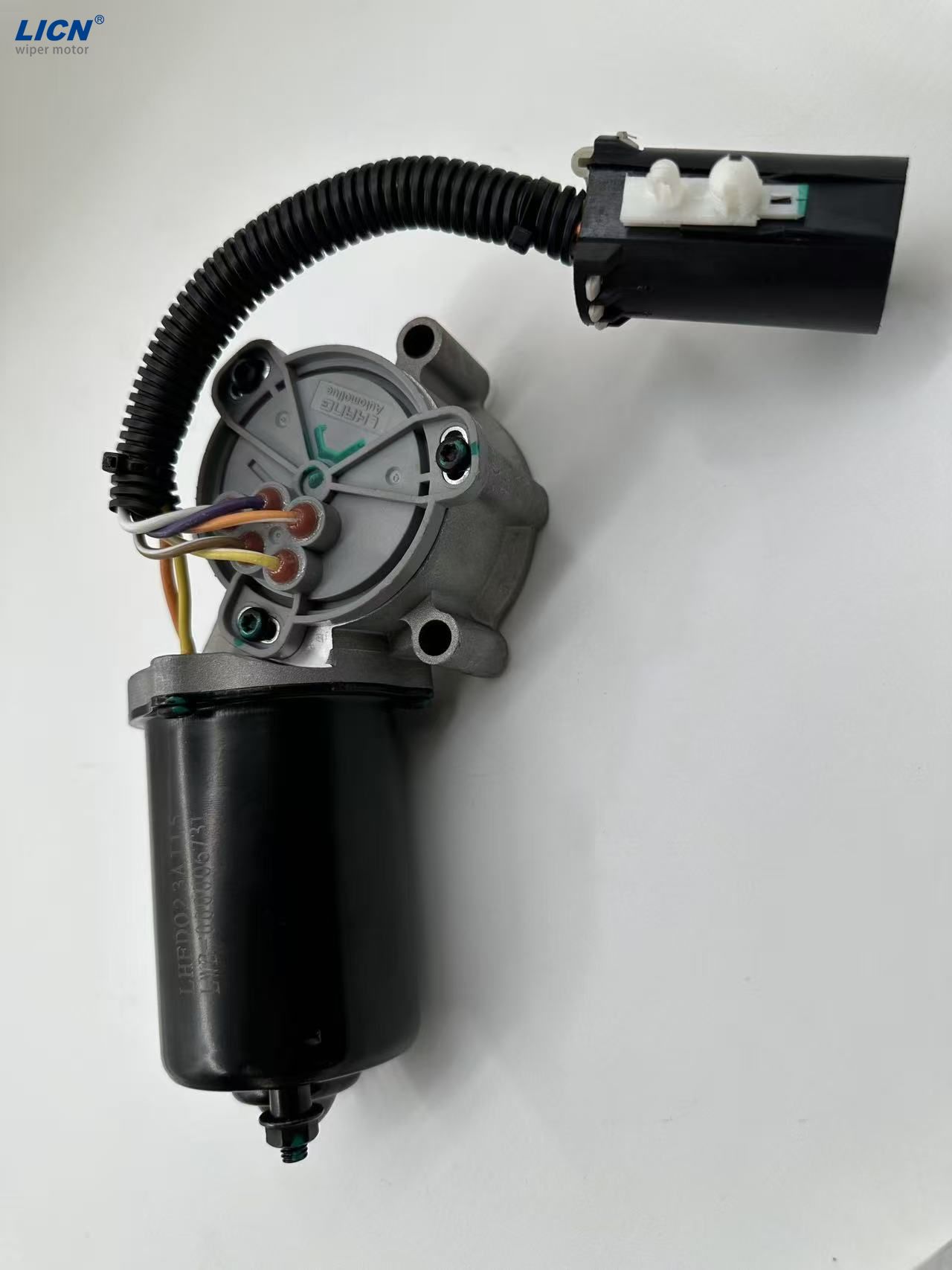

Engineered to meet or exceed the original specifications, this motor ensures perfect compatibility with your Great Wall TDM. It directly replaces OEM numbers 4408648001A and 6M347K004AA for a hassle-free installation.
2.Precision Engineering for Durability:
Manufactured with high-quality materials and robust internal components, this motor is built to withstand the demands of off-road use, providing long-lasting performance and resistance to vibration and temperature variations.
3.Maintains System Integrity:
By using a direct-fit, specification-matched component, you protect the integrity of your vehicle’s entire 4WD control system, preventing potential issues with sensors or the transfer case control module.

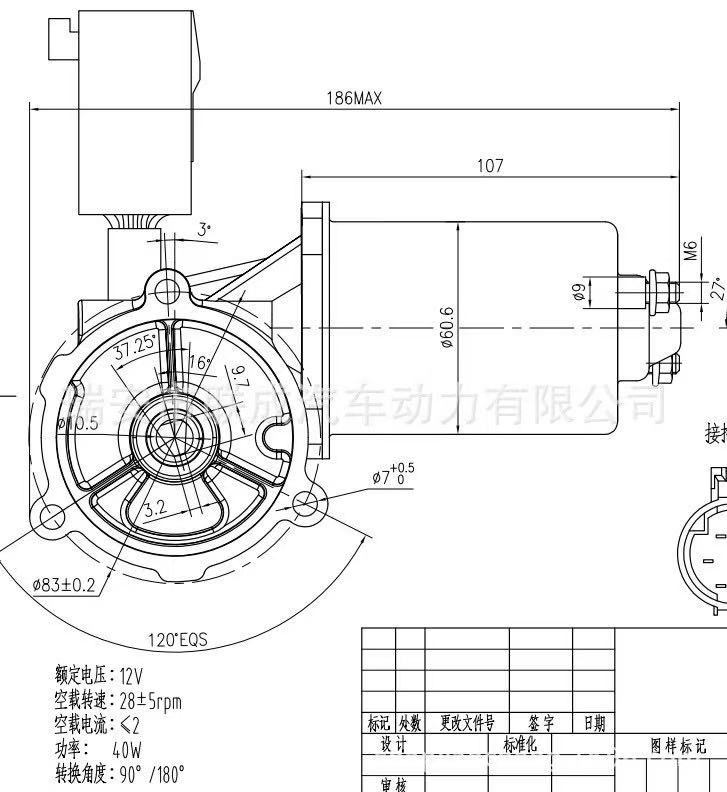

| Parameter Category | Specification | Notes / Description |
| Product Type | Transfer Case Actuator Motor | Electrically engaged motor for 4WD systems |
| Voltage | 12 Volts DC | |
| Rotation | 30±5 RPM | |
| Power | 30W | |
| Torque | 25N.M |

1.Precise and Reliable Engagement:
Ensures accurate and dependable shifting between 2-wheel drive (2H) and 4-wheel drive (4H/4L) modes, providing confidence in various driving conditions.
2.Robust Construction and Durability:
Built with high-quality materials to withstand harsh off-road environments, vibrations, and extreme temperatures, ensuring a long service life.
3.Compact and Efficient Design:
The 12V DC power system is efficient and integrates seamlessly with the vehicle's existing electrical system. Its compact size allows for easy installation within limited space constraints.
4.Enhanced Vehicle Capability:
Enables the driver to effortlessly access the vehicle's full 4x4 potential, significantly improving traction and control on low-grip surfaces like mud, snow, sand, and steep inclines.
5.Improved Safety:
By providing a secure and reliable connection to 4-wheel drive, it enhances vehicle stability and control in adverse weather and challenging terrain, contributing to overall driving safety.
1. Primary Function: Engagement/Disengagement of 4WD
The motor is an actuator designed to electrically engage and disengage the vehicle's four-wheel drive (4WD) system via the transfer case.
It receives signals from the driver's 4WD mode selector (e.g., 2H, 4H, 4L buttons or dial) and physically shifts the transfer case's internal gears or clutch to the commanded position.
2. Operation via Dashboard Controls
The motor operates only upon command from the vehicle's electronic control unit (ECU).
To Engage 4WD: While the vehicle is moving at a low speed or is stopped (refer to your owner's manual for specific instructions), select the desired 4WD mode (4H or 4L) using the dashboard control switch.
To Disengage 4WD: Select the 2H mode using the dashboard control switch. It is often recommended to drive straight for a short distance to allow the system to disengage smoothly.
3. Required Vehicle Conditions for Operation
For shifting into 4H: Can often be done at low speeds or while rolling slowly (e.g., under 5-10 km/h). Some models may allow shifting while stopped.
For shifting into or out of 4L: The vehicle must be completely stopped, the transmission must be in Neutral (N), and the brake pedal is often depressed. Always consult the vehicle's owner's manual for exact procedures.
This isn't just a generic motor; it's the correct, application-specific solution. Restore the critical 4WD functionality of your Great Wall TDM with a reliable component that promises OEM-level quality, a perfect fit, and peace of mind on any terrain.
LICN is a specialized manufacturer based in China’s heartland of auto parts, Ruian, Zhejiang. We are dedicated to the research, development, and production of high-performance automotive motors. Our state-of-the-art facility is equipped with advanced testing equipment, and every unit undergoes strict quality control inspections before leaving our factory. We are not just a supplier; we are your strategic partner for quality, reliability, and growth in the automotive aftermarket.
Ready to experience the perfect blend of quality, value, and service? Contact our expert team today for a personalized quote or to discuss your customization needs.
WhatsApp: +8618814981806
Tel: +86-577-65217866
Phone: +86-15858858012
Email: sales@china-liancheng.cn
Address: Nanhe Industrial Zone, Tangxia Town, Ruian, Zhejiang Province, China
Q1: What is this motor used for?
A: This 12V DC electric motor is specifically designed to actuate the transfer case in certain Great Wall (GWM) 4x4 vehicles. It engages or disengages the four-wheel drive (4WD) system electronically, shifting between 2WD, 4H, and sometimes 4L modes as commanded by the vehicle's dashboard switch.
Q2: Which Great Wall models is this motor compatible with?
A: Compatibility is critical. This motor is typically designed for models like the Great Wall Wingle, Steed, Haval H5, and other older GWM 4x4 models. Always check your vehicle's specific model year and VIN number against the product specifications before purchase, as designs can change.
Q3: What are the most common symptoms of a failing transfer case motor?
A: Common signs include:
The 4WD indicator light flashing on the dashboard.
Inability to engage or disengage 4WD.
Hearing a repeated clicking or grinding noise from the transfer case area when trying to shift modes.
The vehicle getting stuck in one drive mode (e.g., stuck in 4WD).
Q4: My 4WD isn't working. Is it definitely the motor?
A: Not always. The problem could also be:
A blown fuse or faulty relay in the 4WD circuit.
A faulty 4WD mode switch on the dashboard.
A wiring harness issue (corrosion, break, or poor connection).
An internal mechanical issue within the transfer case itself.
A faulty position sensor on the motor or transfer case. Proper diagnosis is recommended.
