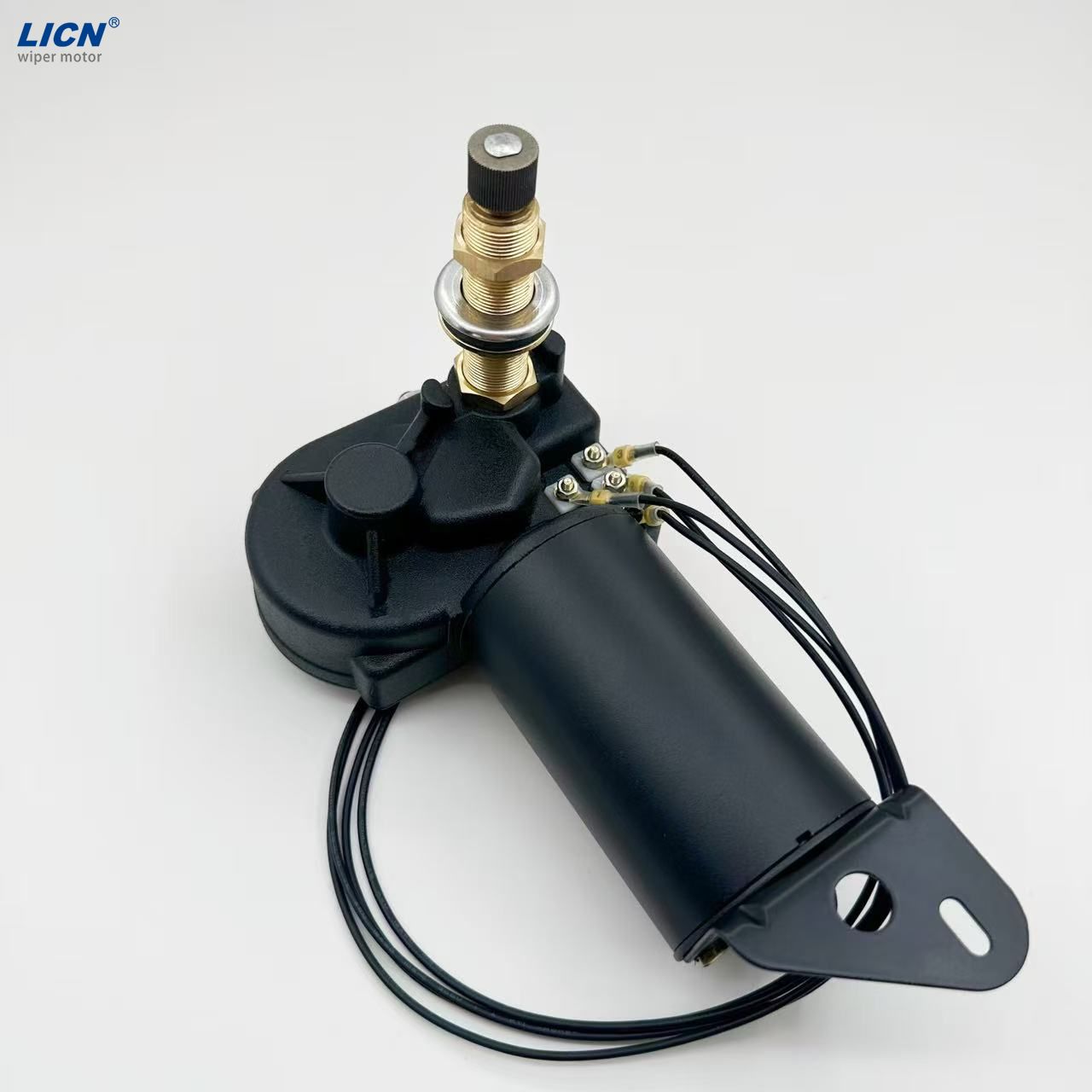

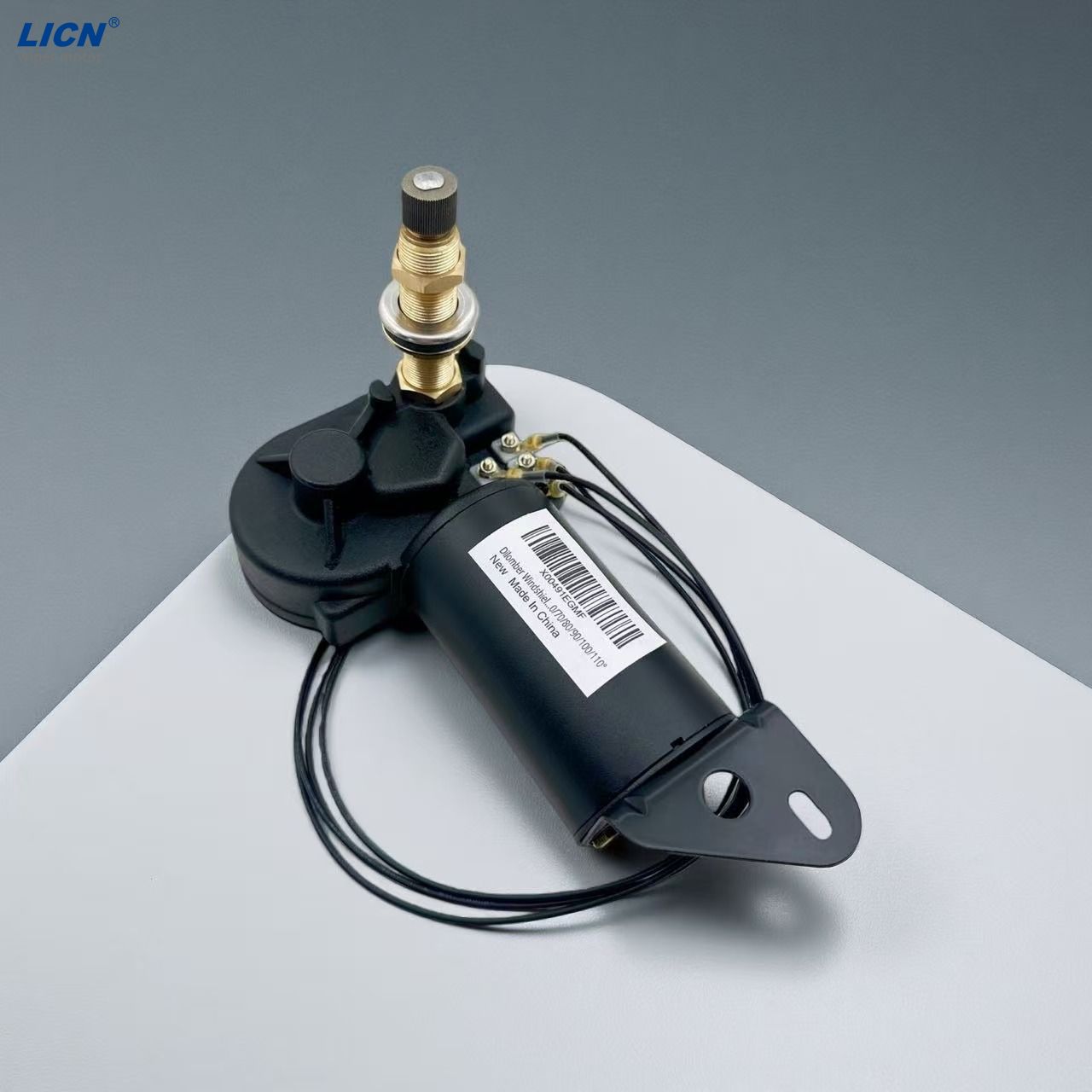

Sealed & Weather-Resistant Housing:
Benefit: Protects the internal components from rain, spray, dust, and moisture. Ensures stable operation and a long service life in harsh outdoor and marine environments.
Durable Brass Bushings:
Benefit: Provides superior wear resistance, reduced friction, and excellent heat dissipation compared to standard materials. This translates to smoother operation, less maintenance, and an extended motor lifespan.
Direct Replacement for Popular Models:
Benefit: A perfect fit for systems designed to use common part numbers, simplifying your sourcing and replacement process.

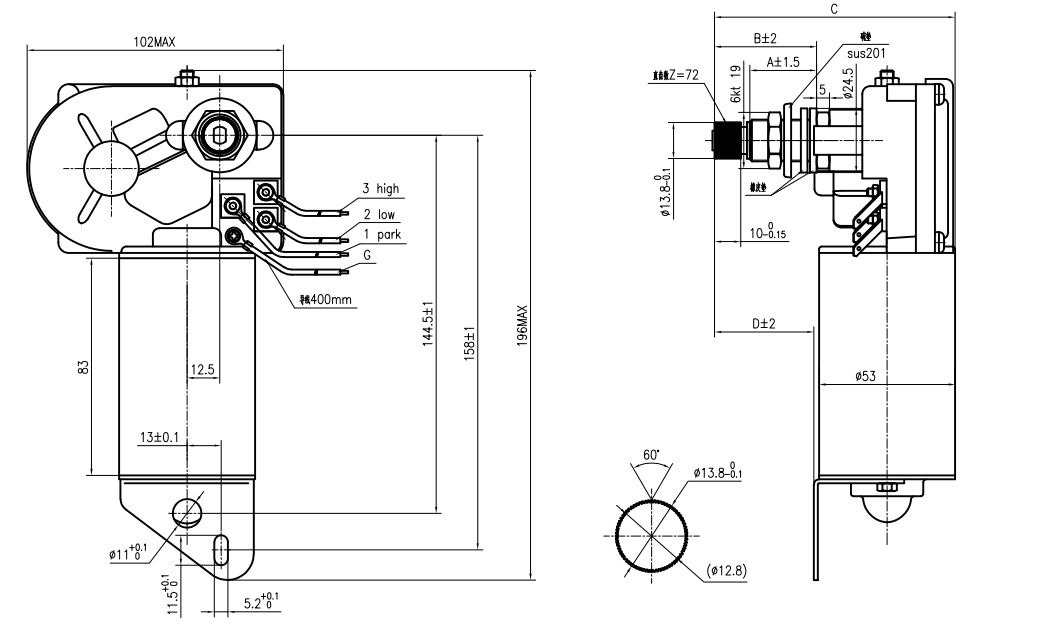

• Shaft — 1/2" diameter brass shaft; available in 1", 2", or 3" thread lengths (eqivalent to other manufacturers' 1-1/2", 2-1/2", and 3-1/2" overall lengths, respectively)
• Speeds — low speed = 35RPM , high speed = 55RPM
• Park — coast-to-park circuitry; user adjustable for left or right side parking
• Sweep — user adjustable 40° - 110°, in 10° increments
• Housing — Black powder-coated aluminum housing; water resistant
| Parameter | Details | Description |
| Model Number | LCZD1070 | Unique identifier for this wiper motor unit. |

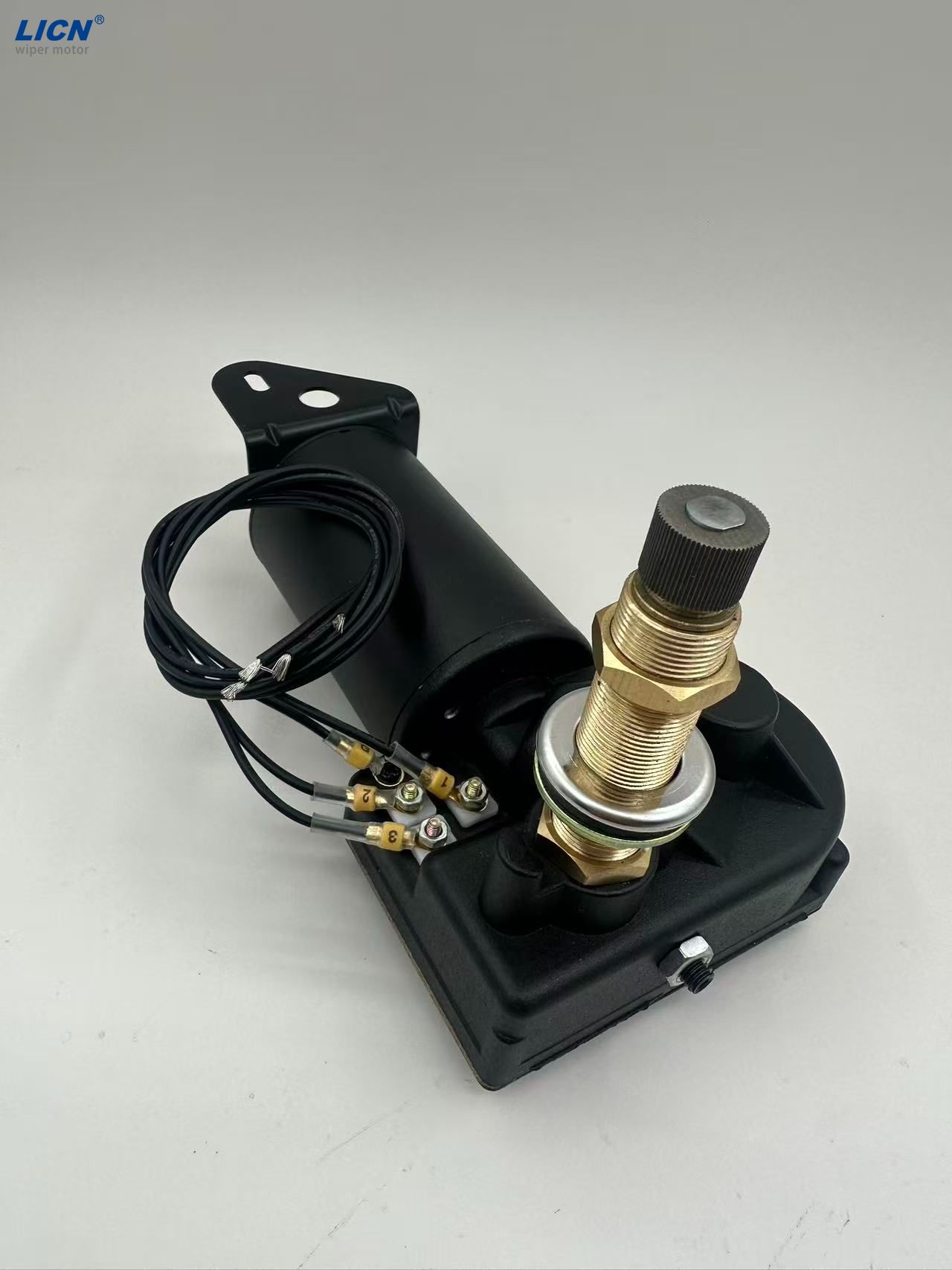

| OEM Cross-Reference | 435776,435790 | Directly replaces the original part number. |
| Voltage | 12V / 24V | Compatible with a wide range of electrical systems. |
| Power | 30W | Provides sufficient power for smooth, efficient wiper operation. |
| Low Speed (RPM.L) | 40±5rpm | Revolutions per minute for low-speed wiping, ensuring control in light rain. |
| High Speed (RPM.H) | 60±5rpm | Revolutions per minute for high-speed wiping, clearing heavy downpours quickly. |
| Torque (N.M) | 12NM | High torque output to overcome resistance from heavy snow or debris on the windshield. |
1.Universal Voltage Operation (12V / 24V DC):
Benefit: Offers maximum compatibility. Easily integrates into standard 12V automotive systems or more robust 24V setups found in commercial vehicles, boats, and heavy machinery. One motor for multiple platforms.
2. Adjustable Wiper Sweep Angle (40° to 120°):
Benefit: Unmatched customization for your specific field of view.
Standard Factory Setting: Shipped pre-set at a versatile 110° sweep.
Adjustable Range: Can be easily configured to 40°, 53°, 65°, 85°, 90°, 100°, or 120° to match your exact application requirements.
3.Multiple Output Shaft Lengths:
Benefit: Ensures a perfect physical fit for different mounting configurations and arm linkages.
Available Options: 1-inch, 2-inch, and 3-inch shaft lengths.
Note: This list covers the most common models. For other models or if you are not sure, please contact us regarding the product size and application method.
