| Quantity: | |
|---|---|
Provides substantial torque and speed for small to medium-duty industrial tasks, ensuring efficient operation without over-engineering.
Built with high-quality materials and components to withstand continuous operation in challenging environments
Offers excellent speed regulation and quick response to control inputs, essential for precision applications.
Saves valuable space in your machinery design, allowing for flexible integration.
The simple and robust DC design reduces downtime and long-term ownership costs.
| Parameter | OEM/Model Angle | Applicable Models | |
| V | 12/24 | Install hole 72mm,70mm | Used for mechanical equipment |
| W | 100W/120W | ||
RPM.L | 30±3rpm | ||
RPM.H | 50±3rpm | ||
| N.MM | 70nm | ||
Tailored Gear Solutions: To meet a wide range of application requirements, our wiper motors offer customizable gear material options:

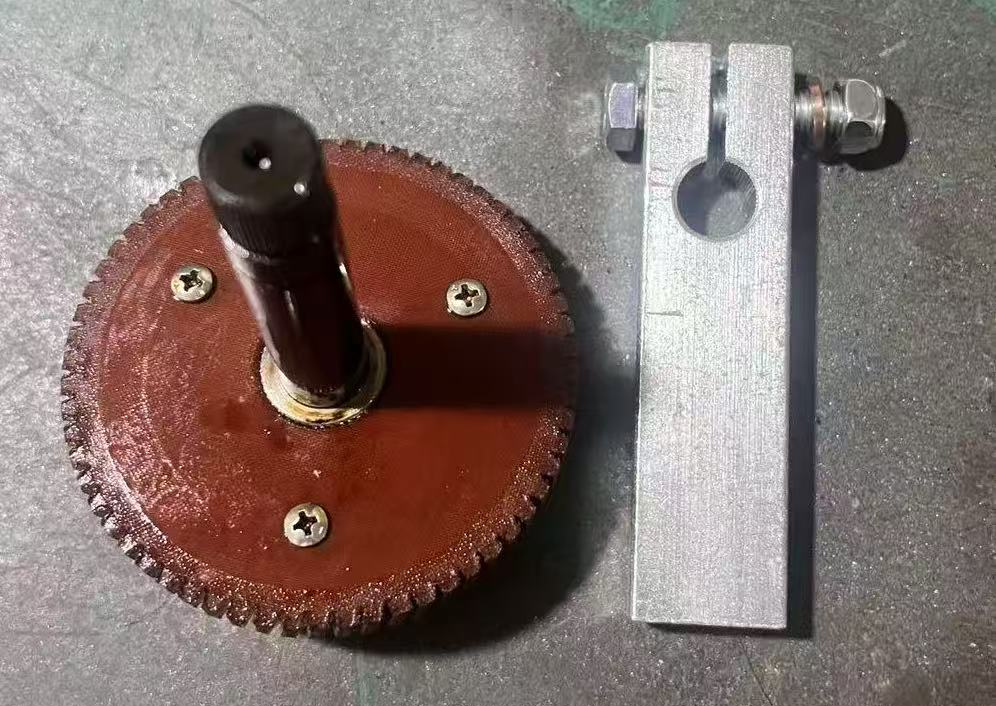

1.Bakelite/Phenolic Gears: Suitable for applications requiring high load capacity and thermal resistance, ensuring long-term durability under demanding conditions.
2.High-Performance Plastic Gears: Designed to achieve optimal noise reduction and reduced component weight, contributing to overall system efficiency.
We collaborate closely with clients to select the most appropriate gear solution based on specific performance, cost, and service life objectives.
Trucks & Buses – Suitable for heavy-duty vehicles requiring robust wiper systems.
Construction & Agricultural Vehicles – Ideal for excavators, tractors, and harvesters exposed to dust, mud, and rain.
Marine & Boats – Can be adapted for marine wiper systems (ensure proper waterproofing).
Machinery Cleaning Systems – Used in conveyor belts, mining equipment, and processing plants to clear debris.
Agricultural Machinery – Effective for windshield wipers on combines and sprayers.
Special Vehicles – Fire trucks, military vehicles, and snowplows requiring high-torque wiper action.
Custom Automation – Can be integrated into automated cleaning systems for industrial windows or sensors.
Works in extreme conditions: rain, snow, dust, and high temperatures.
12V/24V options available for different power systems.
