We go beyond standard offerings by specializing in fully custom-built wiper motors. Our engineering team works directly with you to adapt every critical parameter—voltage, RPM, torque, mounting configuration, connector types, and even environmental sealing.
By operating as the source manufacturer, we control the entire production process. This allows us to eliminate middleman markups, streamline supply chains, and optimize production efficiency.
Each motor undergoes a rigorous, multi-point testing protocol for performance, durability, water resistance, and noise levels. This vertical integration is your assurance of consistent, high-quality, and reliable motors that meet the most demanding standards, batch after batch.
| PARAMETER | MODEL | APPLICATION | |
| V | 12/24 | Machinery Motor, Automation Motor, DIY Power Motor, Equipment Drive Motor, OEM Motor Solution | |
| P | 120 | ||
| NM | 80 | ||
| RPM.L | 35 | ||
| RPM.H | 50 | ||
| SHAFT | 13.2/12.8 | ||
| MOUNT SIZE | 70/72 |

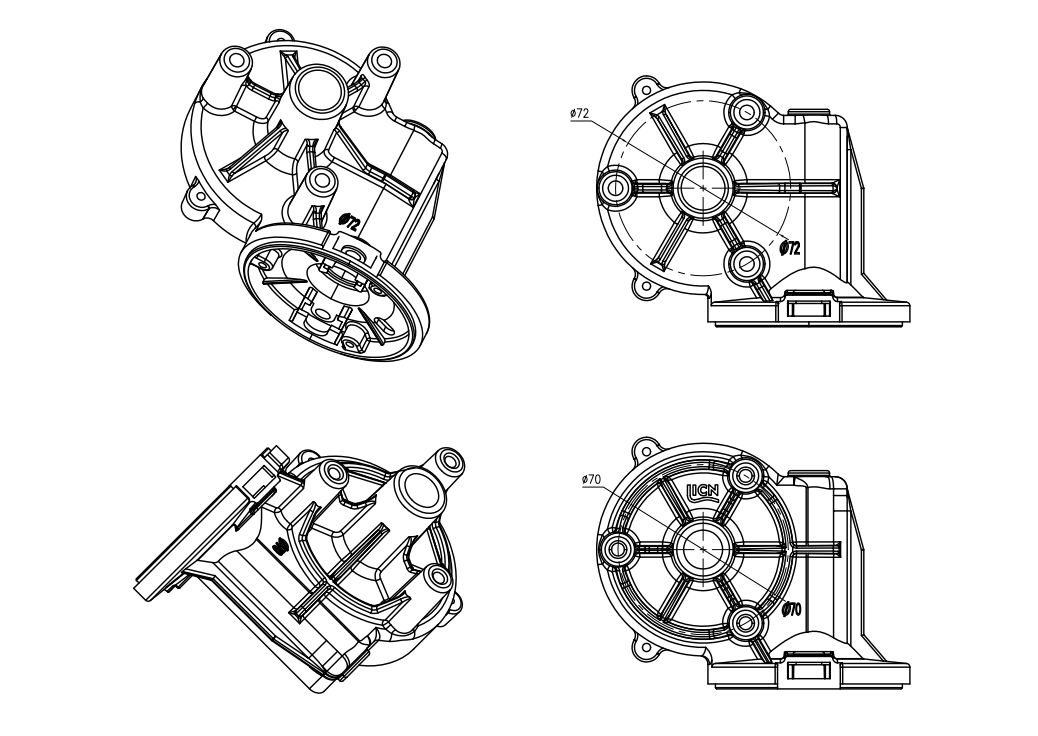

Note:To optimally accommodate your design requirements, we provide our gearbox in two compact frame sizes: 72 mm and 70 mm. This selection enables precise alignment between spatial installation constraints and the required power and torque performance for your specific application.

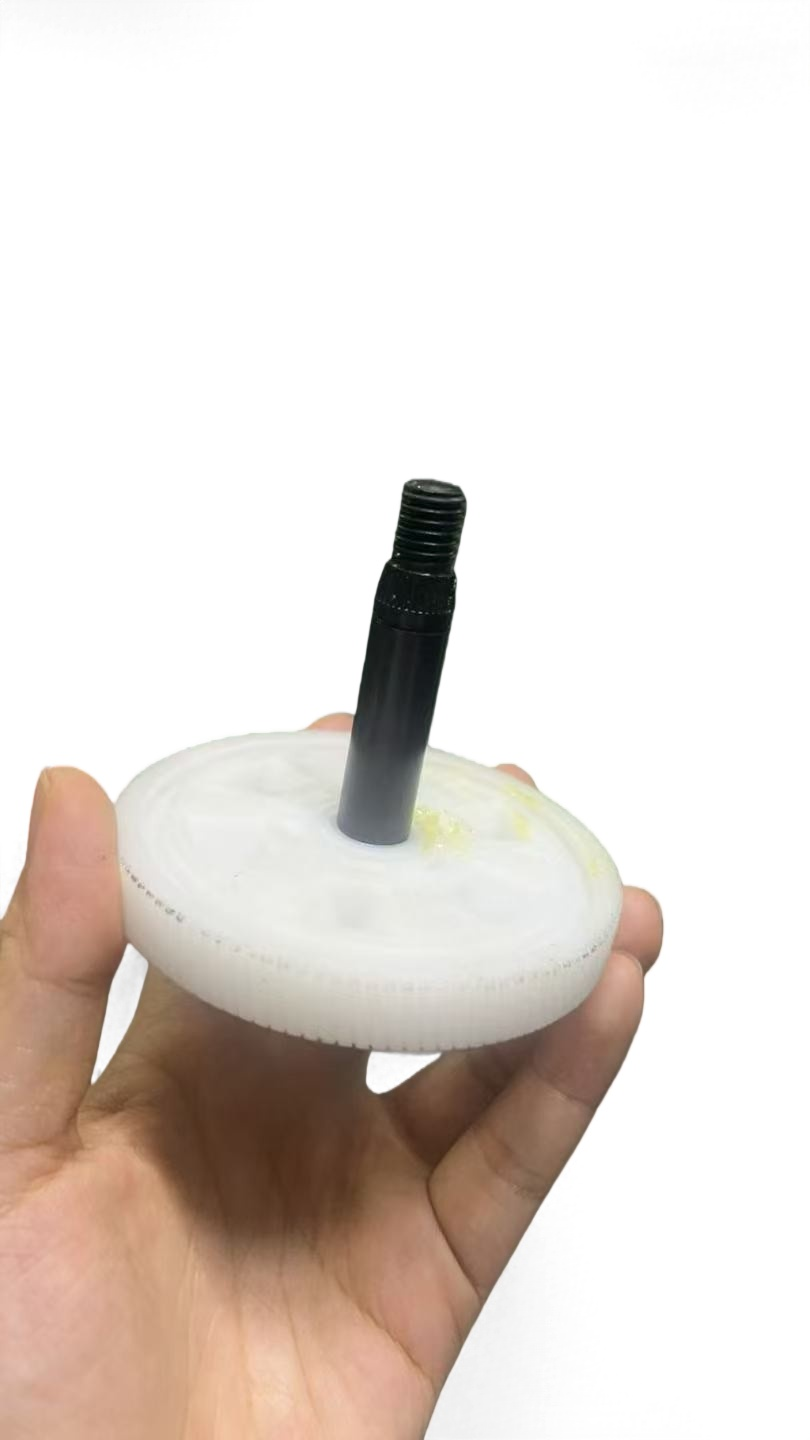

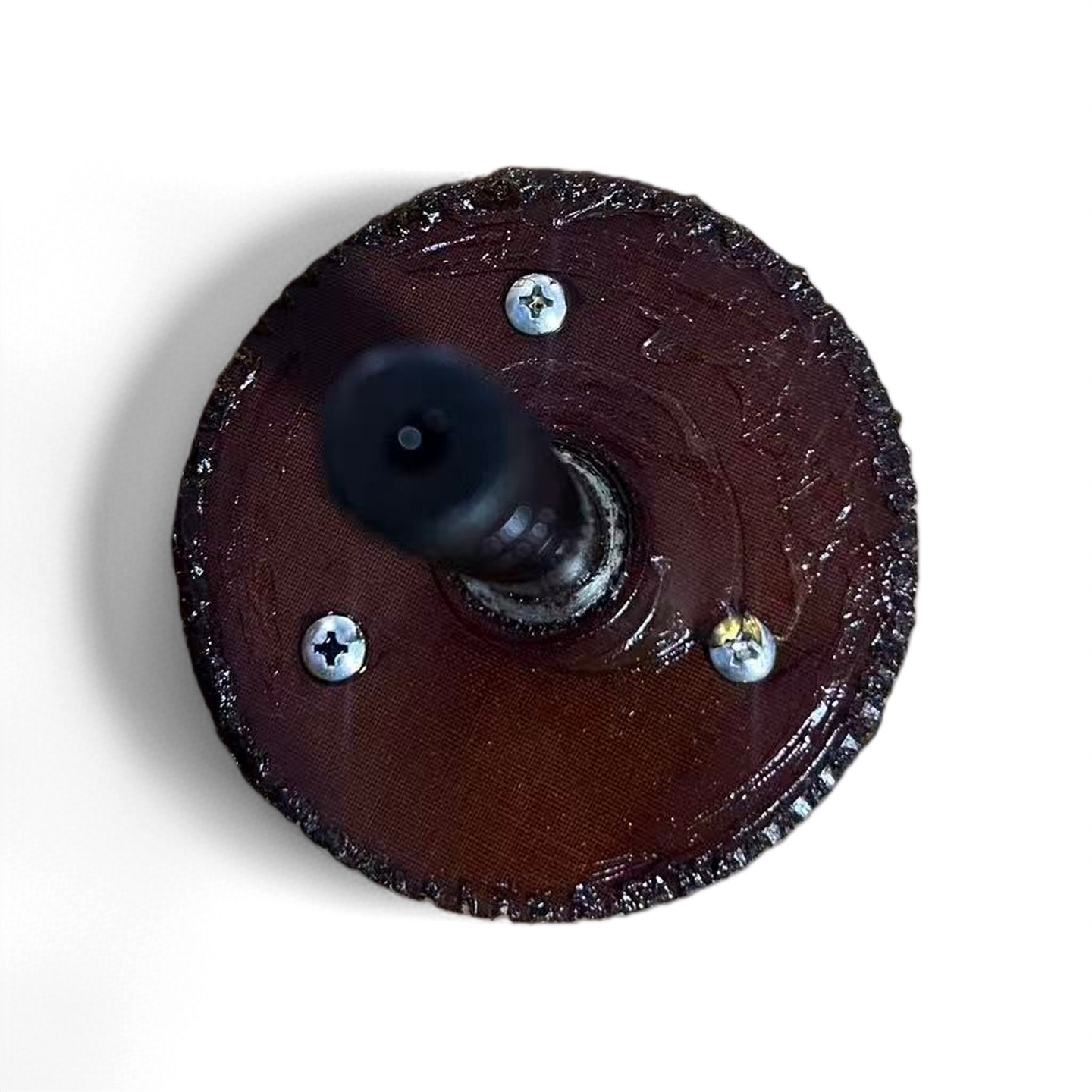

The higher power (120W) delivers stronger wiping force, which demands a more durable internal component. That's why we equip it with gear. This specially engineered material is chosen to prevent premature wear, ensuring your motor operates reliably for years, even under demanding conditions.
1.High-Torque & Reliable Power: With a solid 120W output, this motor provides consistent and dependable torque, ensuring smooth operation and the strength to handle demanding tasks in various equipment.
2.Dual Output Shaft Options: Designed for versatility, it features two output shaft diameters (13.2mm and 12.8mm). This flexibility simplifies integration, saving you time and effort in adapting the motor to your specific drive system requirements.
3.Versatile Mounting Compatibility: Choose from two precise mounting interfaces (70mm and 72mm). This standardized design allows for easy and secure installation into different frames and housings, offering greater design freedom and reducing compatibility issues.
4.Built for Industrial Durability: Constructed to withstand rigorous use, this motor is an ideal, cost-effective solution for automation systems, conveyor belts, agricultural machinery, special-purpose vehicles, and countless other custom mechanical applications.
Coach &vehicle Wiper system
Automated Machinery: Ideal for driving conveyor belts, sorting systems, and small actuators.
Agricultural Equipment: Perfect for controlling small sprayers, feeders, or ventilation flaps.
Cleaning Systems: Powers brushes, squeegees, or oscillating mechanisms in industrial cleaners.
Material Handling: Used in repetitive pushing, pulling, or lifting motions.
Custom DIY Projects & Robotics: A powerful and compact actuator for prototypes and automated solutions.
