Additional Notes:
Compatibility: Designed as a direct OEM replacement for DOGA excavator wiper systems.
Adjustability: Sweep angle may be mechanically adjustable (65° or 90°).
Load Capacity: High-torque output (~16 Nm) ensures reliable performance in harsh conditions.
Parameter | Specification |
Voltage Rating | 12V DC / 24V DC (Dual Voltage Compatible) |
Operating Voltage Range | 10V–15V (12V) / 20V–28V (24V) |
Motor Type | Permanent Magnet DC Motor |
Output Torque | ~16 Nm (Newton Meters) |
Sweep Angle | 65° / 90° (Adjustable/Selectable) |
Speed (RPM) | 50 ±10 RPM (Revolutions Per Minute) |
Housing | External Protective Metal/Plastic Shell |
Mounting | Bracket-Mounted (Excavator-Compatible) |
Protection Level | (Dustproof & Water-Resistant) |
Operating Temperature | -30°C to +85°C (-22°F to +185°F) |
Duty Cycle | Continuous Duty (Suitable for Long Use) |
Connector Type | Waterproof Electrical Connector |
Application | Excavators, Construction Equipment |
| Certifications | CE, RoHS (Compliance Pending Confirmation) |
Product Advantage:
1.High Torque & Reliable Performance
Delivers a powerful 16 Nm torque, ensuring smooth and stable operation even under heavy loads or harsh weather conditions (rain, snow, dust).Maintains consistent performance for 65° or 90° wiping angles, suitable for various excavator models and windshield sizes.
2.Precision-Engineered for Durability

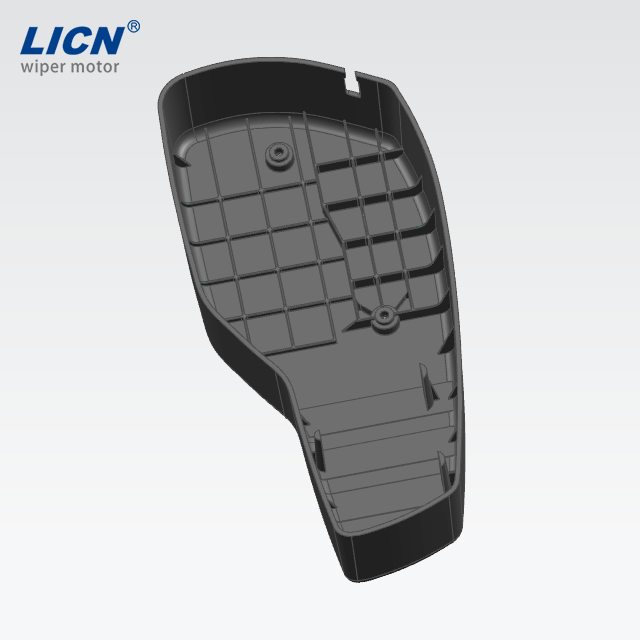

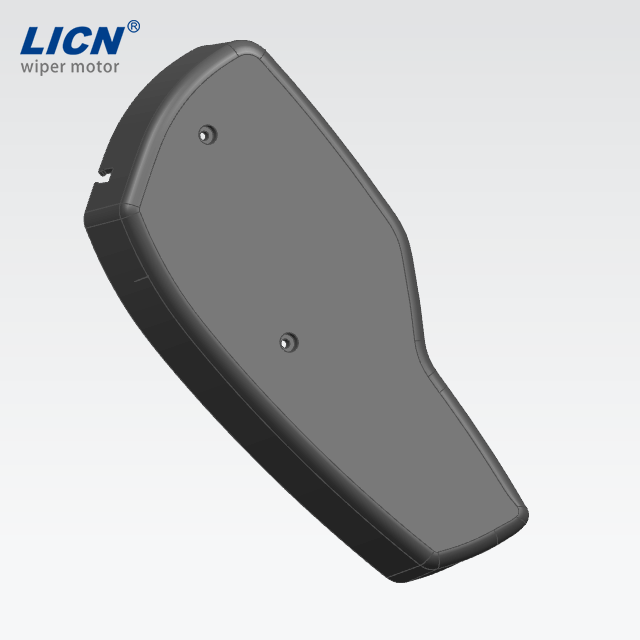

Features a cover outer housing for superior protection against water, dust, vibrations, and mechanical impacts, extending service life in rugged construction environments.
3.Optimized Speed & Efficiency
50±10 rpm rotation speed ensures efficient wiping without streaks, balancing speed and torque for clear visibility.Low power consumption (compatible with 12V/24V systems), reducing energy drain on the vehicle’s electrical system.
4.Seamless Compatibility
Direct replacement for original DOGA motors, with identical mounting dimensions and electrical connections for hassle-free installation.Customizable wiping angles (65° or 90°) to match OEM specifications.
Product Uses
Ideal for Use in:
Excavators (mini, mid-size, and large models)
Bulldozers & Wheel Loaders
Mining & Agricultural Equipment
Other Heavy-Duty Machinery requiring reliable windshield wiping in extreme conditions
This motor ensures durable, high-performance operation in challenging environments, including construction sites, mining operations, and agricultural fields, where resistance to dust, water, and mechanical stress is critical.
For OEM replacements or aftermarket upgrades, this DOGA-style wiper motor provides a dependable solution with compatibility across multiple heavy-equipment brands.
