Bosch OEM F006 WM0 310 Windshield Wiper Motor, 12V/24V Compatible

Introduction

1.Direct OEM Replacement

Designed as an exact match for specific vehicle models. It ensures a perfect fit, correct electrical compatibility, and reliable operation without the need for modifications.

2.Uncompromising Bosch Quality:

Manufactured with high-quality materials and precision engineering. This motor delivers consistent torque and smooth operation for quiet, efficient, and streak-free wiping performance.

3.Built for Durability:

Robust construction ensures resistance to weather extremes, vibration, and continuous use. Provides a reliable solution to restore your wiper system’s performance.

4.Enhanced Safety:

Reliable wiper operation is critical for driver visibility. This motor helps maintain a clear windshield during rain, snow, and sleet, contributing directly to safer driving.

5.Trusted OEM Heritage:

Bosch is a leading global supplier to vehicle manufacturers worldwide. When you choose an OEM part, you are choosing the same quality and performance originally installed in your vehicle.

Note:

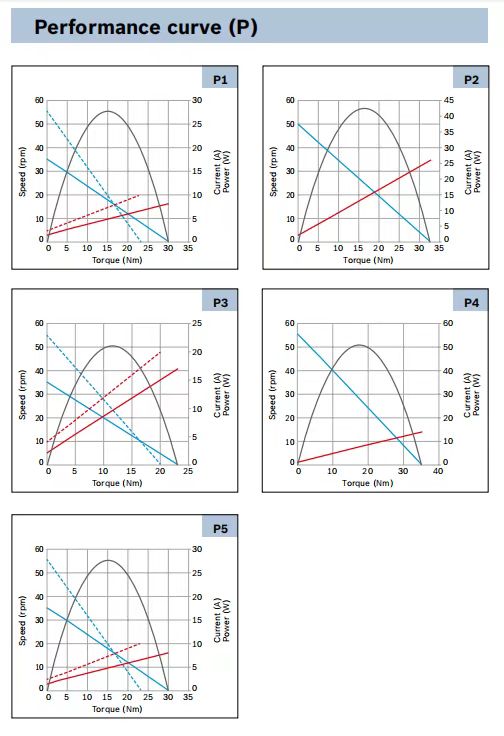

Each Bosch wiper motor is engineered with a unique performance curve, precisely mapped to its application.  This inherent specificity underscores our capability for customization on demand.  We tailor the torque, speed, and operational characteristics to meet your exact vehicle architecture and performance requirements.

Product Uses

Bosch Wiper Motor (Left/Right Hand, Plastic/Copper Gear Options)

1.Automotive Windshield Wiping System – Provides reliable and efficient wiping for cars, trucks, and SUVs.

2.OEM Replacement – Directly replaces factory wiper motors for seamless performance.

3.Aftermarket Upgrades – Enhances wiper system durability with copper gear options.

4.Heavy-Duty & Commercial Vehicles – Suitable for buses, trucks, and off-road vehicles (24V versions available).

5.All-Weather Performance – Ensures clear visibility in rain, snow, and extreme temperatures.

6.Custom Applications – Adaptable for specialty vehicles, marine, or industrial equipment (upon request).

Technical Specifications

1.General Information

• Type: Windshield Wiper Motor

• Gearbox Orientation: Available in Left-hand (LH) and Right-hand (RH) versions

• Gear Material Options:

• Plastic Gear (Lightweight, cost-effective, corrosion-resistant)

• Copper/Brass Gear (Higher durability, better heat dissipation, longer lifespan)

2.Electrical Parameters

• Rated Voltage: 12V DC (24V optional for commercial vehicles)

• Power Consumption: 50W – 60W

• Current Draw: ~4A – 5A (at 12V)

• Speed Options: Single-speed or dual-speed (depending on application)

3.Mechanical Specifications

• Output Torque:25-35 Nm (adjustable based on gear ratio)

• Gear Ratio: Customizable (standard 50:1 or as per requirement)

• Rotation Direction: (CW) or  (CCW)

• Protection Rating: IP54 (Dust and water-resistant)

4.Lifespan:

• Plastic Gear: ~100,000 cycles

• Copper Gear: ~200,000 cycles

5.Compatibility & Installation

• Mounting Type: Direct bolt-on (OEM-compatible brackets)

• Connector Type: Standard 3-pin or 4-pin automotive plug

• Compatible Vehicles: Passenger cars, SUVs, light trucks (model-specific variants available)

6.Certifications & Standards

• RoHS & REACH Compliant (Environmentally safe materials)

• OEM Equivalent (Matches original equipment performance)

7.Customization Options

• Voltage (12V/24V)

• Gear Material (Plastic/Copper)

• Speed & Torque Adjustments

• Special Connectors/Extensions (upon request)
