Mining Light DC Gear Motor" - Targets Core Industrial Audience

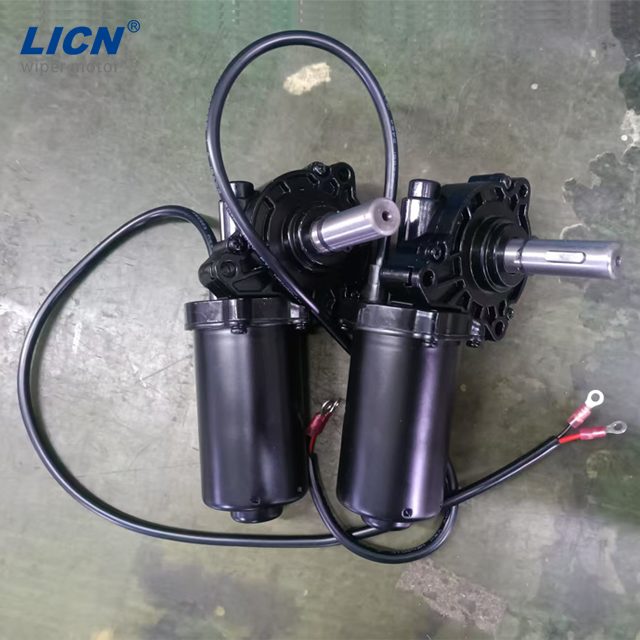

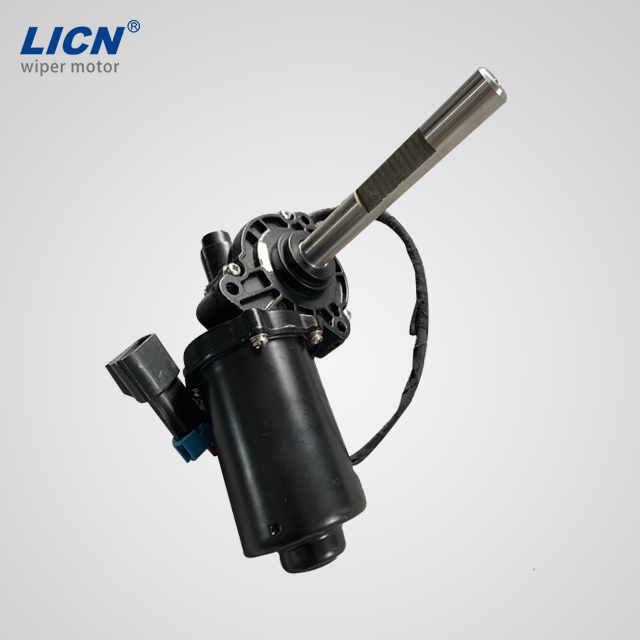

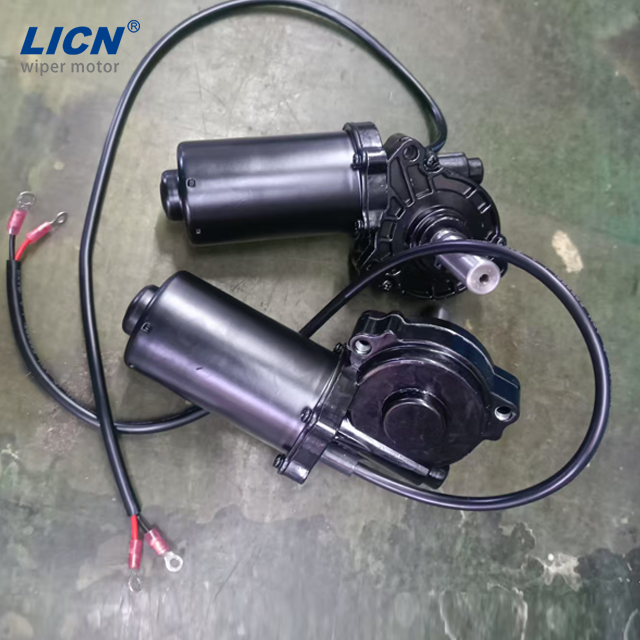

LC-ZD1079

Product Introduction:

This dc gear motor is just made for light angle adjustment.Our heavy-duty 12V/24V DC gear motors provide reliable angular control for mining light systems, operating on the same principle as wiper blade mechanisms to adjust illumination ranges with pinpoint accuracy.We make this small dc gear motor just for the customer to use in the harsh environment. Ensuring the light under the ground to work.The rotation of this dc motor is really slow.It is 3-5 rpm(low speed),but the torque is really ok.It makes the motor last long.

Availability:

Quantity:



Inquire Add to Basket

heavy-duty 12V/24V angle 12v/24v dc gear motor wiper blade mechanisms small dc gear motor slow low speed

Product Description

FAQ

Feature	Specification
Voltage	24V DC (±10%, isolated for surge protection)
Sweep Angle	30°–120° (default), customizable
Gear Type	Worm gear (self-locking, 100:1 ratio)
Duty Cycle	Continuous (S1)
Ambient Temperature	-30°C to +75°C
MTBF	>25,000 hours
TORQUE	30NM
ROTATION	3-5RPM

Product Advantage:

1.Extreme Environment

Resists dust, moisture, and corrosive gases in mines.

Vibration-proof design, Stable operation even during drilling/blasting.

2.Precision Angle Control

Wiper-like mechanism,Smooth, repeatable angular adjustment.

Customizable sweep range – Adapts to tunnel dimension.

3.High Torque, Low Power

24V DC worm gear motor, Delivers 15 Nm torque at just 50W (energy-efficient).

Self-locking gearbox – Holds position without power, preventing drift.

4.Maintenance Minimized

Sealed bearings & stainless shaft – Zero lubrication needed for 10,000+ hours.

Quick-release motor mount – Field-replaceable in <5 minutes.

Product Uses

1.Tunnel lighting: focusing for loaders/vehicles.

2.Emergency lamps: Auto-sweep during evacuations.

3.Inspection robots: Automated light positioning for crack detection.

1. How to install?

Bolt-on mounting, 2-pin wiring (simple plug-and-play).

2. What’s the purpose of this gear motor in mining lighting systems?

A:Precise beam adjustment: Controls the tilt/swivel angle of mining lamps (e.g., 30°–120° range) via linkage mechanisms, similar to windshield wiper motion.

3. What maintenance is required?

Monthly: Inspect gearbox seals for dust ingress.

Annually: Re-grease gears (mine-approved lithium grease).

No maintenance for brushless models (optional upgrade).
