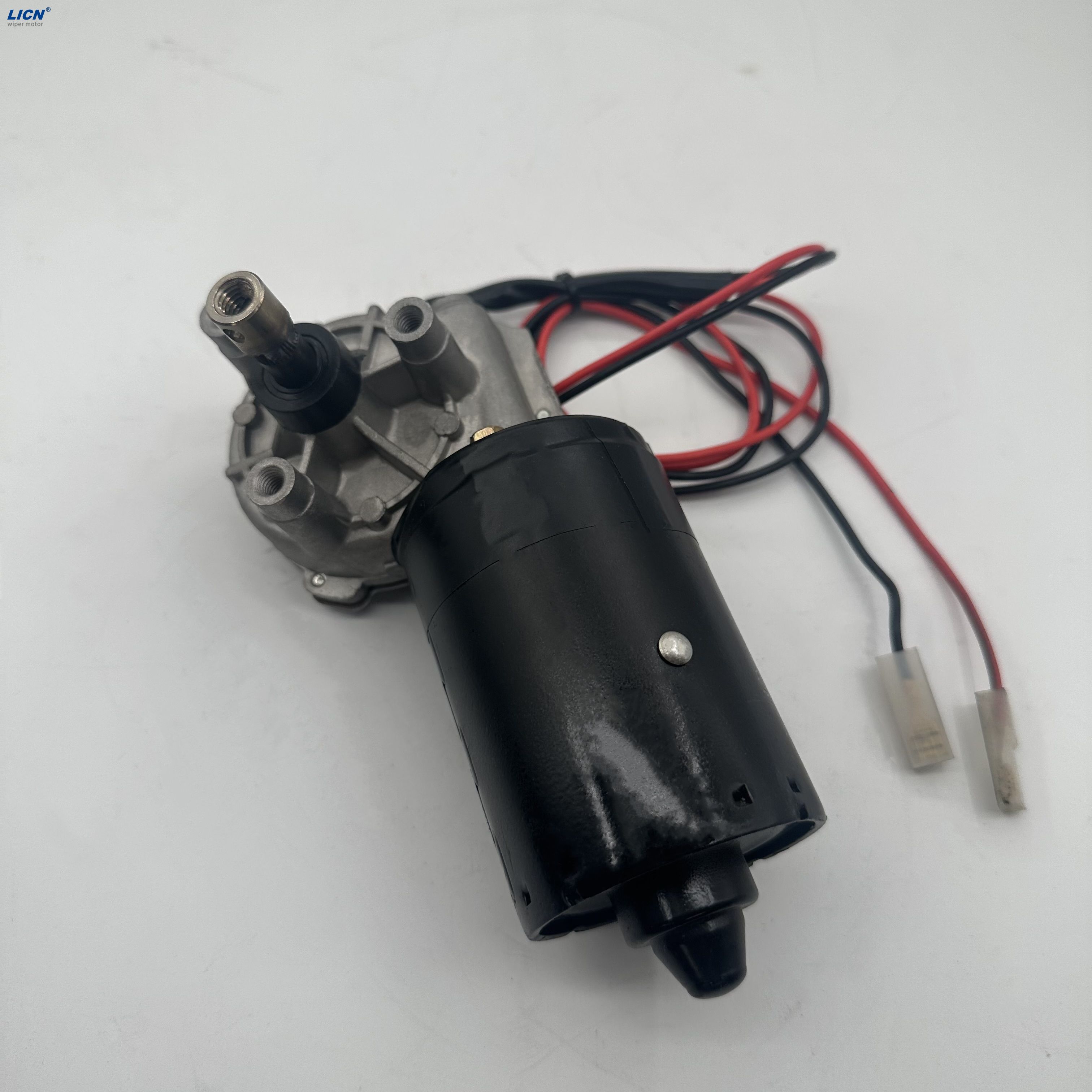

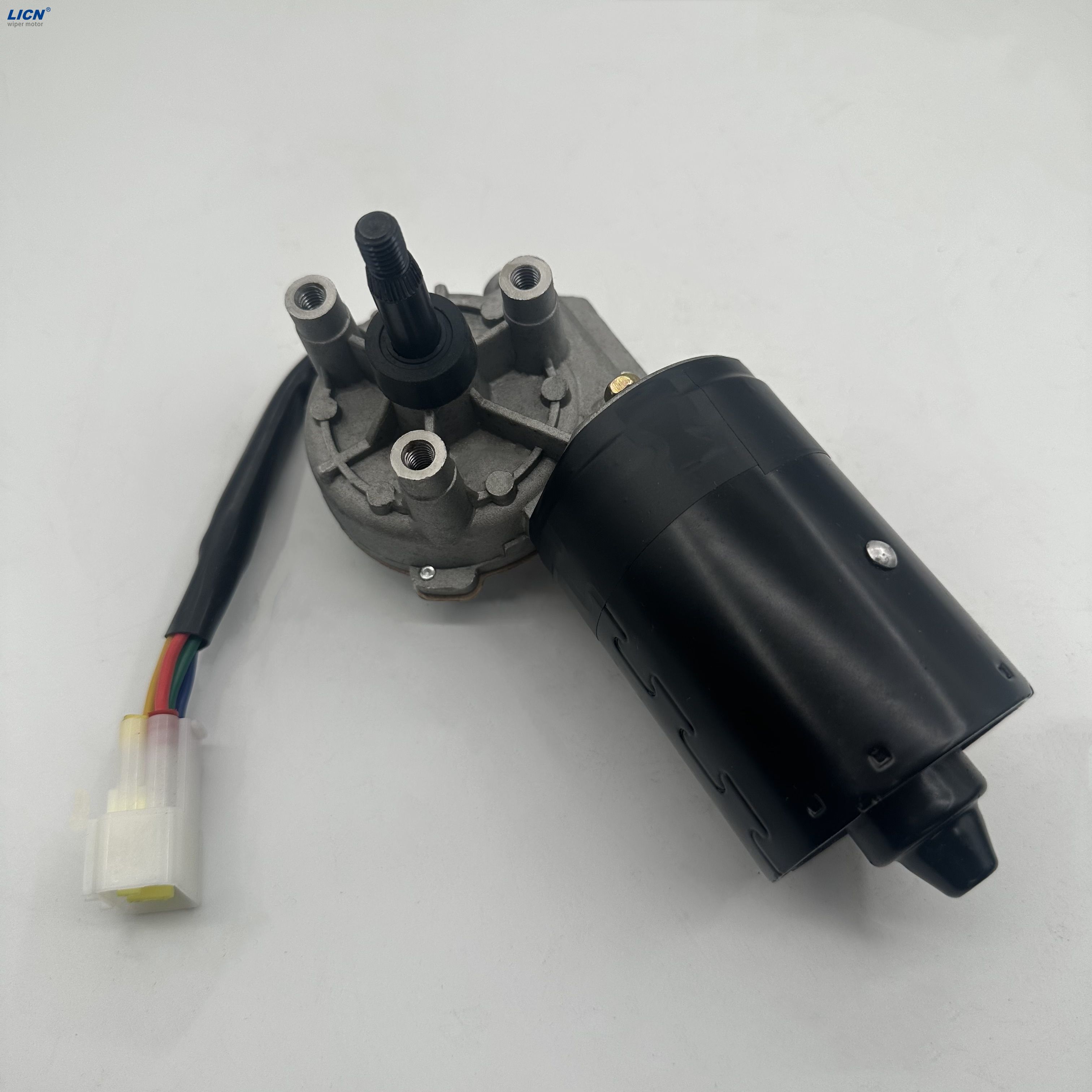

Versatile 50W DC Gear Motor - 12/24/48V, 10-300 RPM - Ideal for Automotive & Industrial Use

LC-ZD1035

Product Introduction：

This 50 W gear motor offers versatile performance in a compact and efficient design. Available in 12 V, 24 V, and 48 V configurations with output speeds ranging from 10 to 300 RPM, it is engineered for durability, reliability, and precise speed control. Designed as a direct replacement for windshield wiper systems in micro trucks and light commercial vehicles, it is also well suited for a wide range of industrial machinery and automation applications requiring robust DC motor performance.

Model:
LC-ZD1035

Availability:

Quantity:



Inquire Add to Basket

Reduction Gear Motor Wiper Motor 12V or 24V DC 48V customized motor 50W power rating speed of 10-300 rpm

Product Description

FAQ

Why choose us?

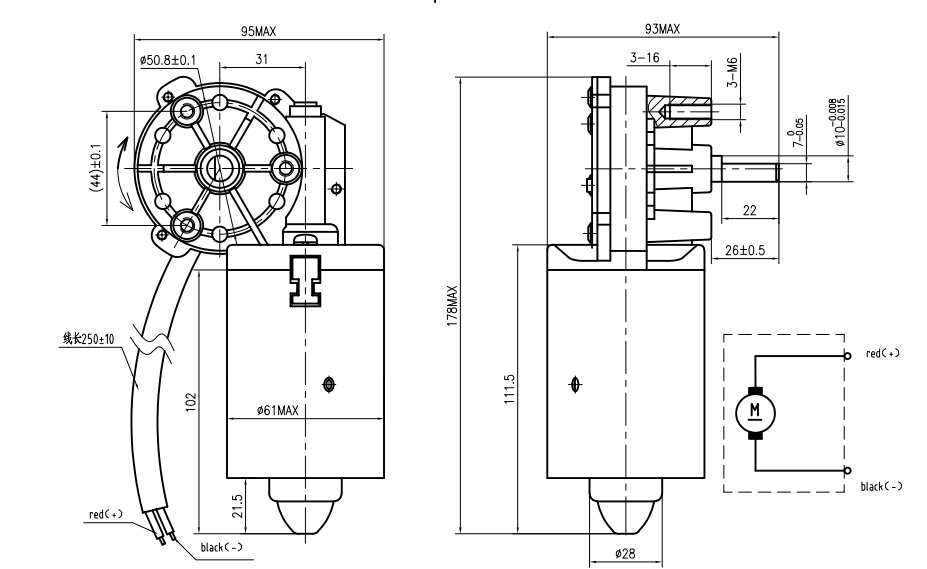

31b1ef9f-fe95-42ce-b98a-3d6b9e8e9bc5

PARAMETER		OEM/MODEL	APPLICATION
V	12/24/48	Left Hand	Light Truck
W	50		Mini Bus
RPM	10-300		Mechanical equipment
NM	7-35
SHAFT	Customizable

Product Advantage:

1.Delivers a consistent 50W output, ensuring robust and reliable performance for critical operations such as windshield wiper actuation under diverse weather conditions or precision motion control in industrial machinery.

2.Offers flexible voltage compatibility with 12V, 24V, and 48V DC configurations, enabling seamless integration into a wide range of electrical systems without requiring complex voltage conversion circuitry.

3.Features precise speed control with customizable rotational speeds ranging from 10 to 300 RPM, allowing optimal adjustment for applications requiring either high-torque low-speed operation or rapid, efficient cycling.

4.Designed with a compact and space-efficient form factor, making it well suited for confined installations such as tight engine compartments in vehicles or embedded positions within mechanical frameworks.

5.Backed by proven operational reliability, this solution is widely adopted in automotive auxiliary systems and industrial automation applications, delivering consistent performance and reduced maintenance requirements.

Product Application：

Automotive Wiper Systems: A perfect direct replacement or OEM motor for mini-trucks, light-duty trucks, vans, and specialty vehicles. Provides smooth and reliable windshield clearing.
Industrial Machinery & Automation: Drives conveyors, dispensers, agitators, and other equipment requiring compact, reliable rotary motion.
Medical Devices
Agricultural Equipment

Q1: What is the power rating and typical application of this DC gear motor?

A: This is a robust 50W (0.067 HP) DC geared motor. It is specifically engineered for applications requiring reliable, low-speed, and high-torque power. Its primary uses include:

Automotive: As a high-performance wiper motor for micro-cars, light-duty trucks, and commercial vehicles.

Industrial Equipment: Driving conveyor systems, automated machinery, medical devices, packaging equipment, and other precision mechanical systems.

Q2: What is the output speed range of this motor?

A: We offer extensive customization for output speed. The standard range is from 10 RPM to 300 RPM. Whether you need very slow motion for precise control or higher speed for efficiency, we can tailor the gear ratio to meet your exact requirements.

Q3: Can this motor be customized for my specific machinery?

A: Absolutely. We specialize in providing custom-engineered solutions. Beyond voltage and speed, we can discuss modifications including:

Shaft type and size (e.g., keyed, D-cut, threaded)

Gear material (e.g., metal, plastic)

Mounting configuration

IP Rating for dust and water resistance

Connector and cable type

WHY CHOOSE US FOR YOUR 50W GEARED DC MOTOR SOLUTIONS?

1. Precision-Tuned Performance for Demanding Applications

We specialize in 50W reduction motors engineered specifically for automotive wiper systems (mini-vehicles & light trucks) and industrial machinery. With customizable speeds from 10 to 300 RPM and versatile voltage options (12V/24V/48V), our motors deliver exact torque and motion control—ensuring reliability in critical operations.

2. Built for Durability, Trusted in Automotive & Industrial Sectors

Rigorously tested to withstand harsh environments—from vibration-heavy engine bays to continuous-duty industrial setups. Our motors feature robust construction, extended lifespan, and minimal maintenance needs, making them the preferred choice for OEMs and equipment manufacturers worldwide.

3. Flexible Customization to Match Your Exact Requirements

Need specific shaft dimensions, gear ratios, or connector types? We adapt quickly. Offer tailored solutions for voltage, speed, mounting options, and IP ratings—accelerating your product development without compromising performance.

4. Compliance and Quality Assurance

Our motors meet international standards for safety and EMC, with ISO-certified manufacturing and strict pre-shipment validation. Rest assured, every unit delivers consistent performance and seamless integration.

5. Global Support, Streamlined Logistics

From prototype to production, we provide responsive technical support and efficient global shipping. Partner with us to simplify your supply chain while gaining a reliable, high-performance motor supplier.
