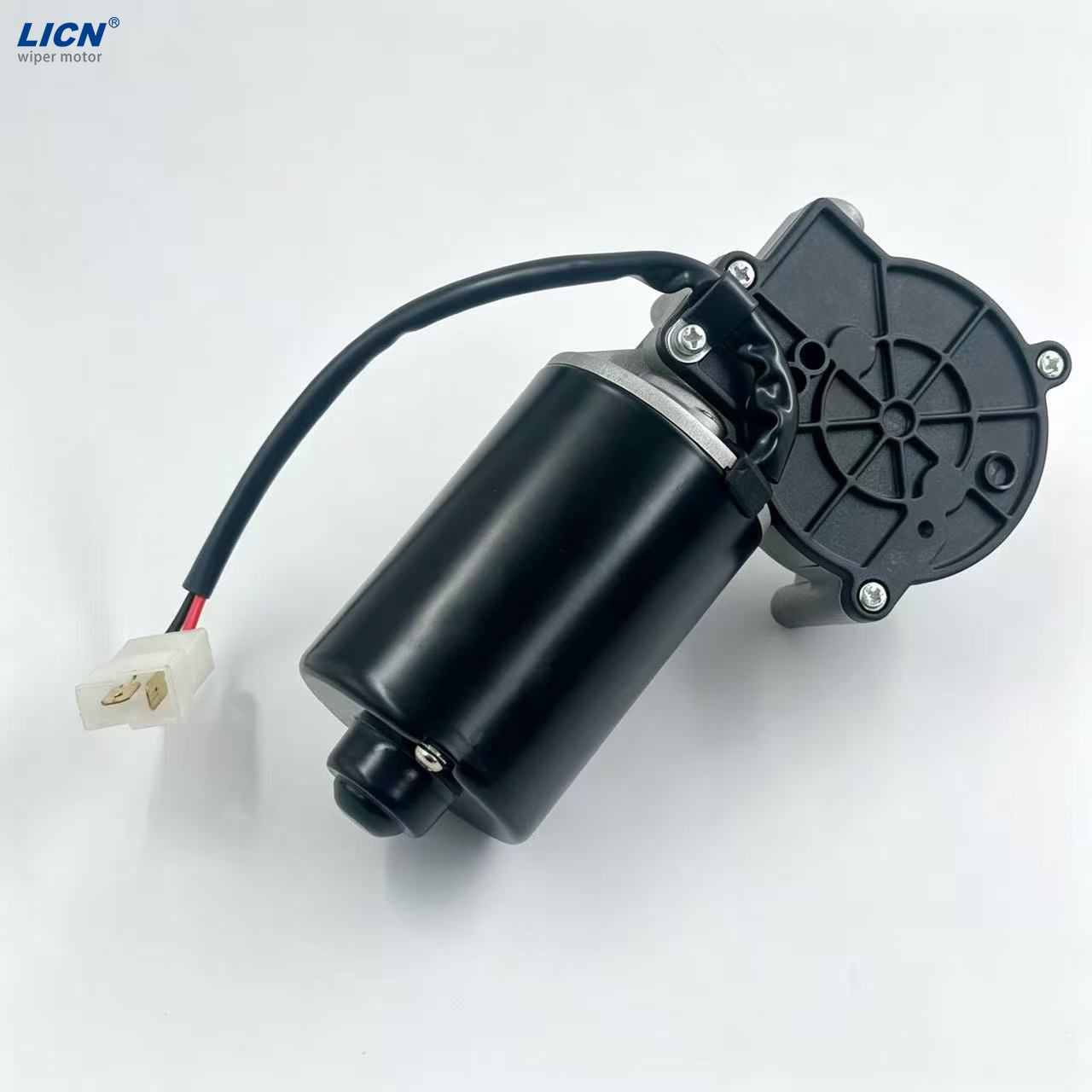

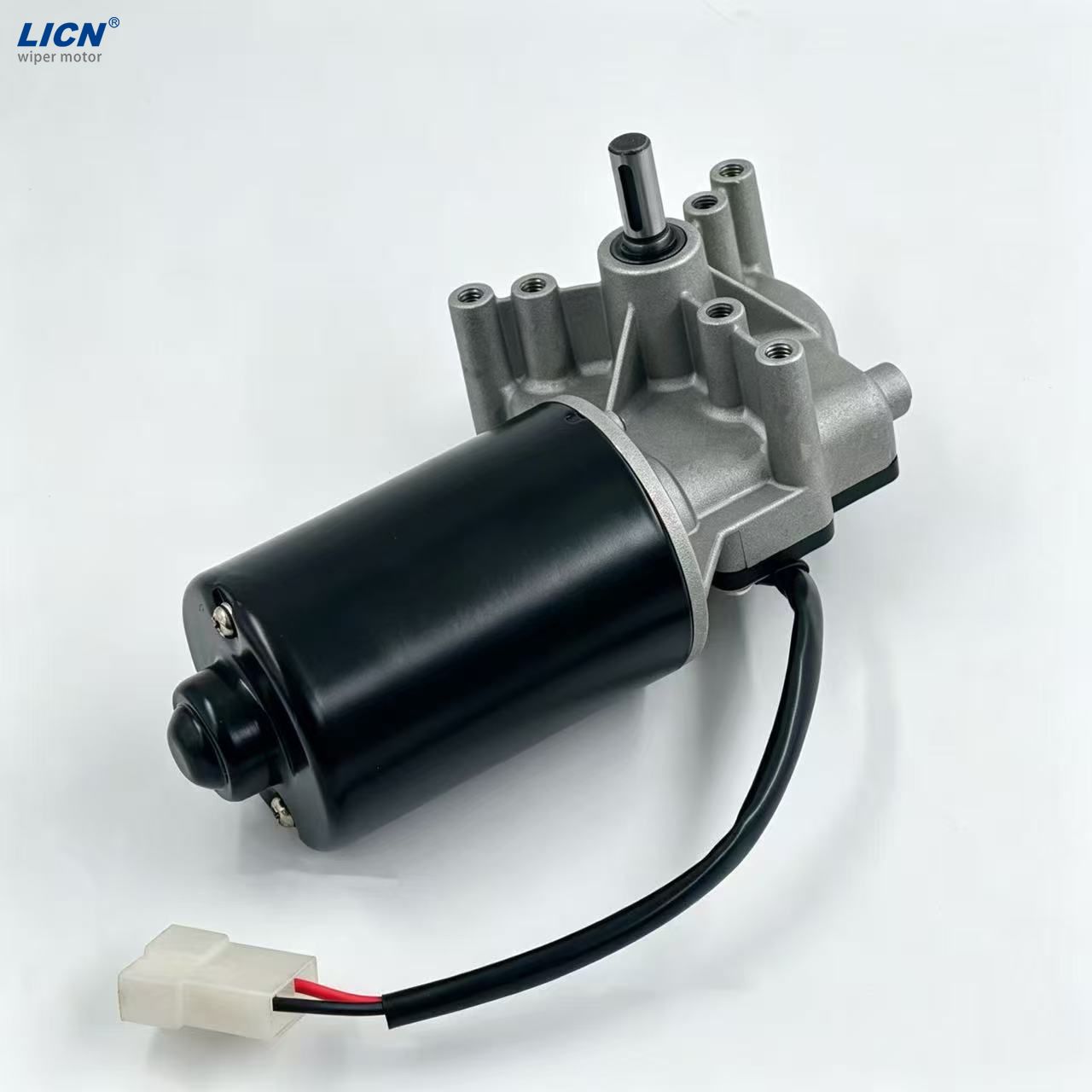

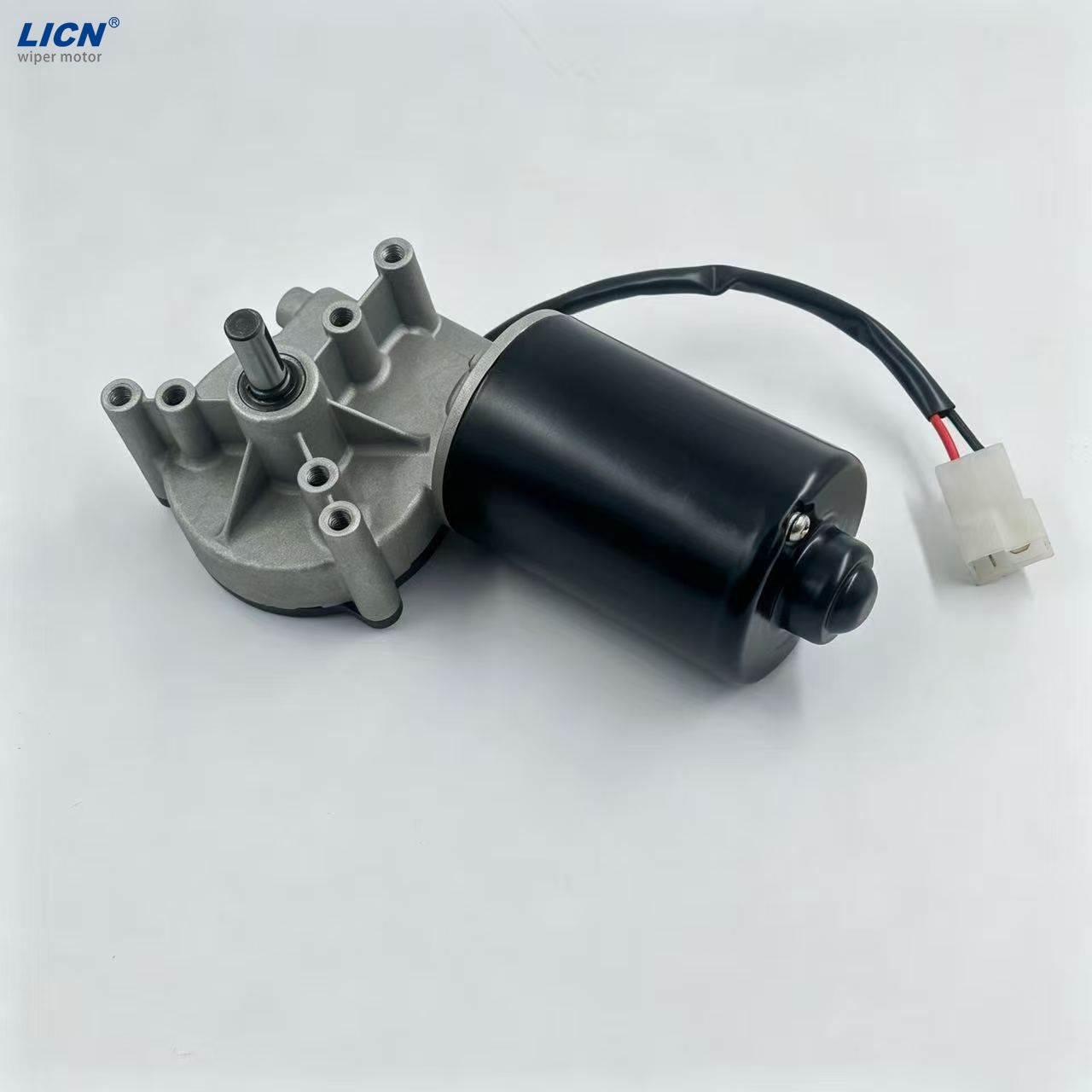

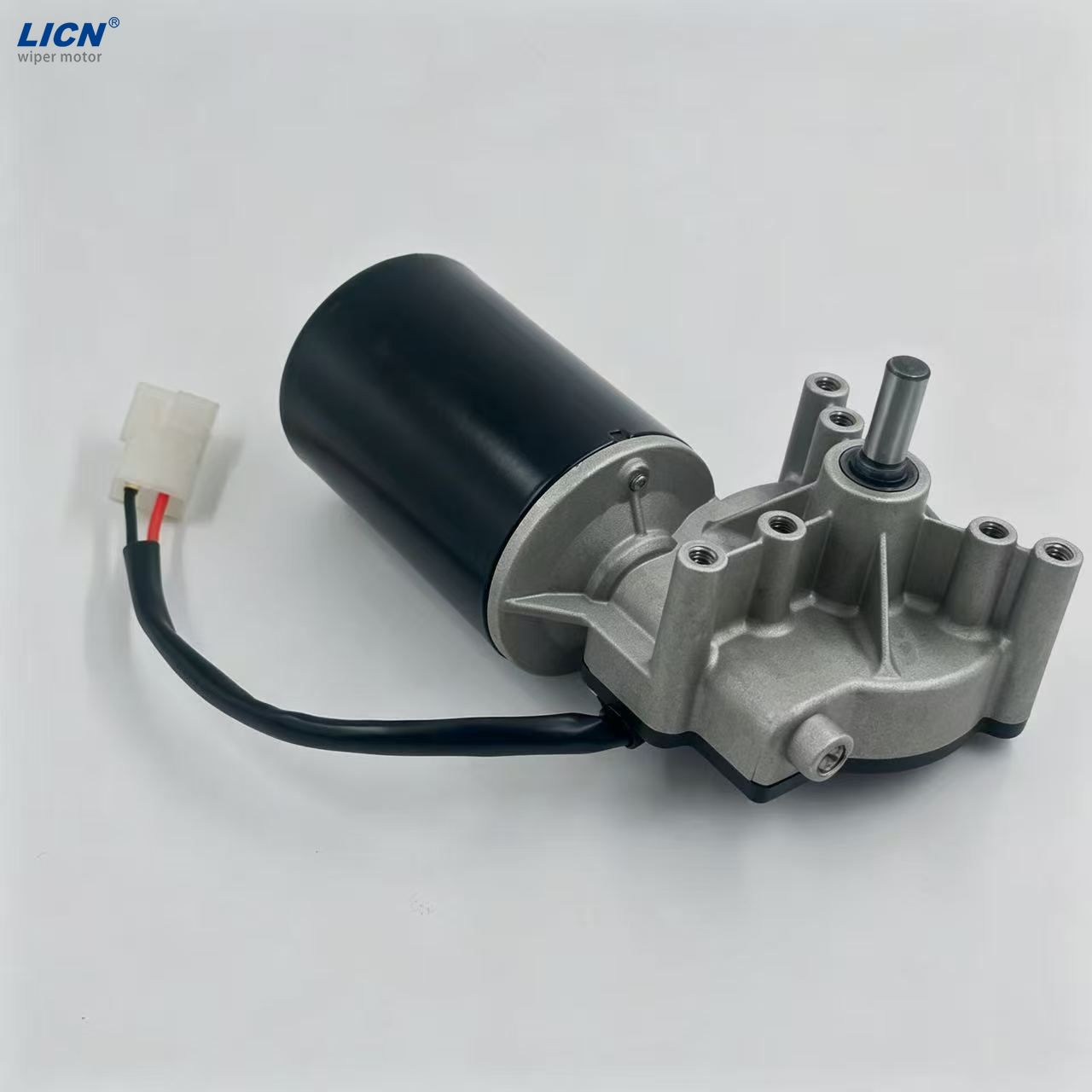

Our 111 series windshield wiper motors support a full range of different models and customized parameters, all specifications can be manufactured as your requirements.

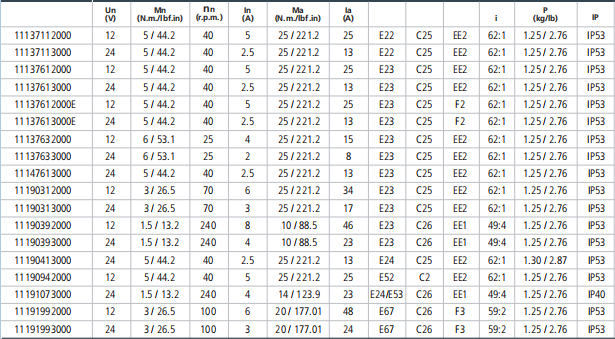

Technical Specifications (Model Examples)
| Parameter | Model 111.3763.30.00 | Model 111.9031.20.00 |
|---|---|---|
| Voltage | 24V DC | 12V DC |
| Speed | 25 rpm | 70 rpm |
| Rated Torque | 6 Nm | 3 Nm |
| Gear Ratio | 62:1 | 62:1 |
| Current | 2A | 6A |
| Protection | IP53 | IP53 |
| Weight | ~1.17 kg | ~1.16 kg |
High Power Output and Torque Performance
The DOGA 111 Series is engineered for demanding automotive applications. Available models deliver rated output torques ranging from 3 N·m to 20 N·m and rotational speeds between 25 rpm and 100 rpm, ensuring reliable and consistent actuation of wiper arms across large windshields—even under adverse environmental conditions such as heavy rainfall, snow accumulation, or mud deposition.
Dual-Voltage System Compatibility
Designed to meet global vehicle electrical architecture requirements, the series is compatible with both 12 V DC and 24 V DC power systems. This dual-voltage capability enables seamless integration as either an OEM-specified component or a direct replacement solution across diverse automotive, commercial, and industrial vehicle platforms.
Robust Environmental Protection (IP53 Rating)
To ensure operational reliability in challenging environments, the DOGA 111 Series incorporates an IP53-rated enclosure. This protection level provides effective resistance against ingress of dust and water spray, thereby enhancing durability and extending service life in outdoor, on-road, and industrial deployment scenarios.
Compact and Lightweight Form Factor
Despite its high torque density, the motor maintains a compact footprint and low mass—minimum unit weight is 1.2 kg. This optimized design facilitates straightforward installation and ensures compatibility with existing wiper system layouts without compromising packaging constraints or adding unnecessary mechanical load.
Precision Worm Gear Transmission
The series employs a precision-engineered worm gear train with a standard 62:1 reduction ratio. This configuration delivers inherent self-locking behavior, high positional stability, and smooth, low-backlash motion—attributes essential for accurate, repeatable, and quiet wiper blade control.
The DOGA 111 Series is trusted across multiple industries:
Automotive & Commercial Vehicles: Buses, trucks, and passenger cars.
Marine Vessels: Ensuring clear visibility in harsh sea conditions.
Heavy Equipment: Construction, mining, and agricultural machinery.
Industrial Systems: Control rooms and outdoor equipment requiring reliable wiping
