DOGA 162 Series 24V 2000 RPM High-Speed DC Motor

Product Introduction:

The DOGA 162 Series Brushed DC Motor is a high-performance, permanent-magnet DC motor engineered to deliver exceptional reliability, precision, and operational versatility. Leveraging more than five decades of specialized motor design and manufacturing expertise, DOGA has optimized this series for superior electromechanical performance within a compact and lightweight form factor.

Operating at a nominal voltage of 24 V DC, the motor achieves a rated speed of 2000 rpm and a nominal torque of 0.2 N·m—characteristics that render it particularly well-suited for demanding industrial automation, mobile equipment, and other mission-critical applications.

Availability:

Quantity:



Inquire Add to Basket

DC motor 24V industrial electric motor customized motor high speed

Product Description

Why choose us?

FAQ

Introduction

Compact & Lightweight Design

The permanent magnet technology enables a compact structure with outstanding power density. The motor is specially designed for applications requiring small dimensions and low weight.

Precise & Quiet Operation

This quality product is distinguished by its:

Accurate rotation speed for consistent performance

Silent running – low noise output

Smooth operation with minimal vibration

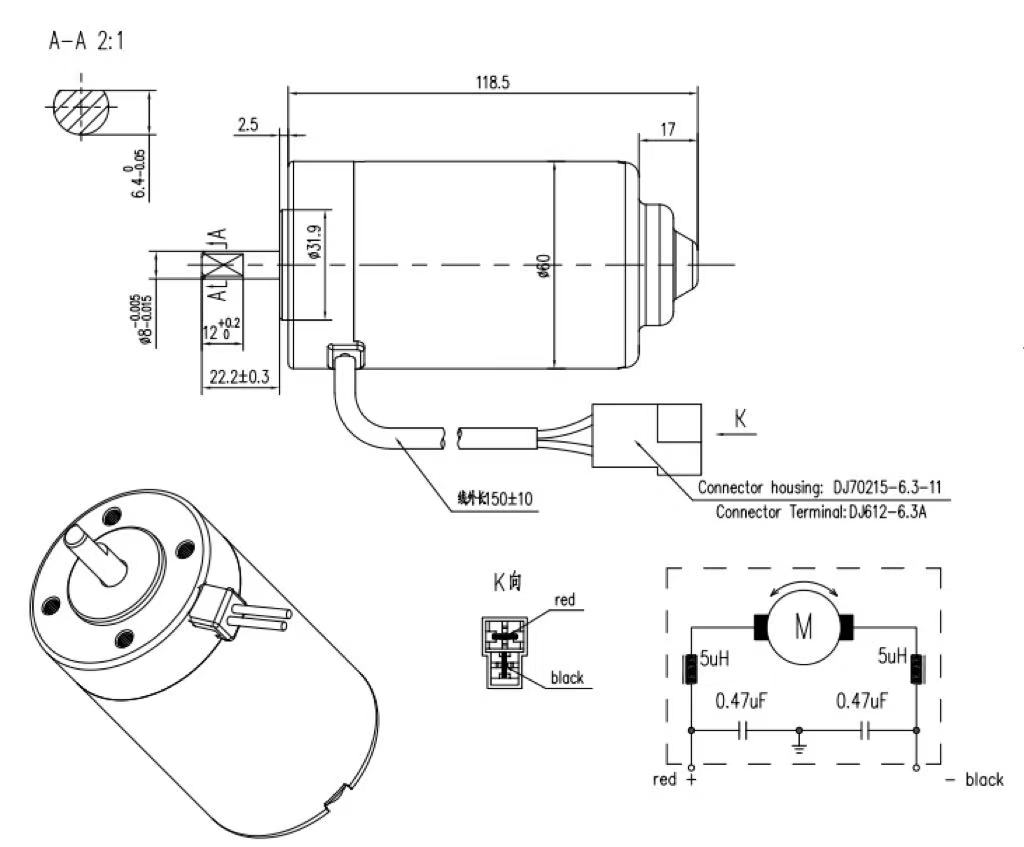

Drawing of Doga 162

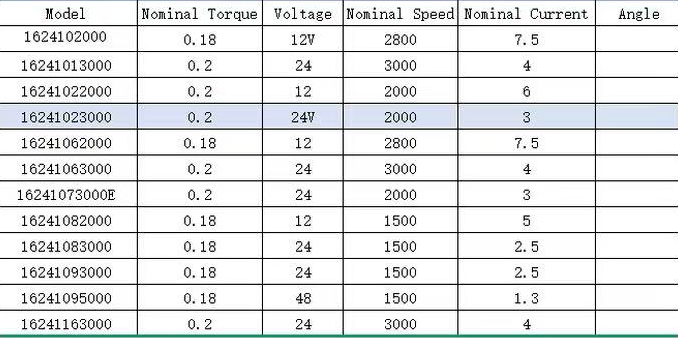

The following sheet is the list of DOGA 162 series

DOGA 162 SERIES

Key Features & Benefits

Rugged & Durable Construction

The motor features an extremely robust design with a housing sealed to IP53 standards, providing excellent protection against dust and water ingress. Short braking periods with low moment of inertia further enhance its operational efficiency.

High Starting Torque

Delivers high starting torque for demanding applications that require reliable initial power.

Simple Speed Control

The 162 series supports straightforward speed regulation, making it easy to integrate into variable speed systems.

Versatile Power Supply

Powered by direct current from a battery or DC power supply, these motors are ideal for both stationary and mobile/portable applications.

Applications

The DOGA 162 Series motor is suitable for a broad spectrum of uses, including but not limited to:

Industrial equipment and OEM machine building

·Automotive and vehicle systems of all types

·Building automation

·Agricultural equipment

·R&D test machines

·Marine applications

·Mobile/portable devices requiring independent power supply

·Motion, movement, or positioning systems

Why Choose Our Wiper Motor?

Customization Capability – DOGA designs and manufactures DC and gear motors with exceptional adaptability, enabling precise customization to meet clients’ unique technical and operational requirements. This capability extends across the full product lifecycle—from specification and prototyping to serial production—even for low-volume orders—without compromising cost efficiency or delivery performance.

Proven Reliability – With over four decades of engineering expertise and extensive deployment across diverse industrial applications, DOGA motors consistently demonstrate outstanding quality, robustness, and long-term operational reliability—earning the trust of design engineers and system integrators globally.

Feature	Our Product
Performance	OEM-Spec or Better
Fitment	100% Direct Fit
Durability	High (Corrosion-Resistant)
Price	Highly Competitive
Customization	Available (OEM/ODM)
Supply	Expert Technical
Support Chain	Direct from Factory

Our Manufacturing Commitment

LICN is a specialized manufacturer based in China’s heartland of auto parts, Ruian, Zhejiang. We are dedicated to the research, development, and production of high-performance automotive motors. Our state-of-the-art facility is equipped with advanced testing equipment, and every unit undergoes strict quality control inspections before leaving our factory. We are not just a supplier; we are your strategic partner for quality, reliability, and growth in the automotive aftermarket.

Contact Us for a Bulk Quote or Customization Inquiry

Ready to experience the perfect blend of quality, value, and service? Contact our expert team today for a personalized quote or to discuss your customization needs.

WhatsApp: +8618814981806
Tel: +86-577-65217866
Phone: +86-15858858012
Email: sales@china-liancheng.cn
Address: No. 8, Xingmao Road, Tangxia Town, Rui'an City, Zhejiang Province,China

Order now and equip your Land Rover with a wiper motor built to perform, designed to last, and backed by a manufacturer you can trust.

FAQ

Q1: Is this a brushed or brushless motor?
A: The DOGA 162 series is a brushed DC motor with a permanent magnet construction.

Q2: Can the motor be customized for my specific needs?
A: Yes. DOGA specializes in offering custom-designed motors and gear motors, even for very low production volumes. They can provide a wide range of customized items without major impacts on price and delivery times.

Q3: Are there gearbox options available?

A: Yes. The 162 series is also available with planetary gear transmissions. The motor is suitable for motion, movement, or positioning applications where the user can select the appropriate drive or gearbox unit
