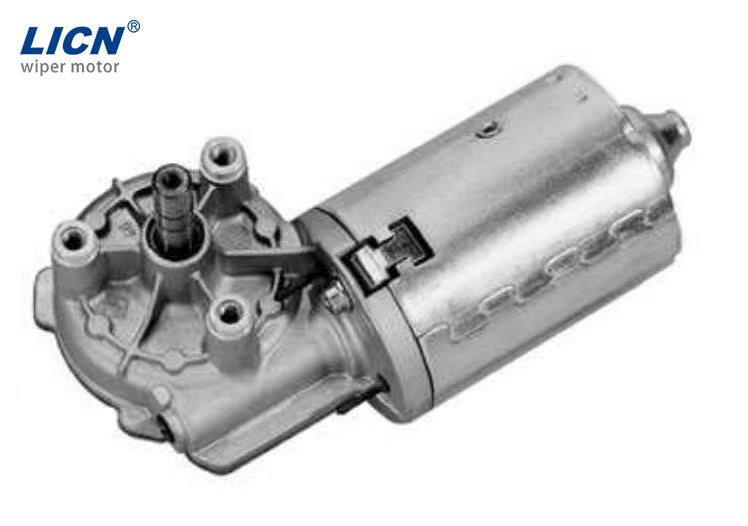

Nidec 402 743 High-Torque 24V DC Gear Motor for Automation

LCZD-1034

Product Introduction:

The Nidec 402 743 is a high-performance 24 V DC planetary geared motor engineered for demanding industrial applications. Designed to deliver reliability and operational efficiency, this compact motor offers an optimal balance of torque, speed, and durability, making it well suited for use in automated systems, industrial machinery, and specialized equipment.

Featuring a straightforward two-wire connection interface, the 402 743 facilitates seamless integration and rapid deployment, thereby minimizing installation time and technical complexity. The robust planetary gearbox ensures smooth operation, efficient torque transmission, and superior resistance to shock loads, rendering the motor a reliable solution for continuous operation in challenging environmental cond

Availability:

Quantity:



Inquire Add to Basket

Reduction Gear Motor small dc gear motor customized motor oem standards 24V DC motor equipment

Product Description

FAQ

c9a80bc2-9bc2-4649-931b-fdc33ffe9623

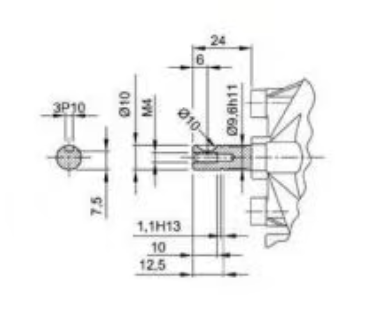

This is the output shaft of the motor. At the top hole position, we will match a crescent shape. This output shaft is designed based on the installation location requirements. If other output shafts are needed, we can customize them.

PARAMETER		OEM/MODEL	APPLICATION
V	24	Nidec 402 743	Automated Guided Vehicles
W	50
RPM	35-50
NM	30
GEAR RATIO	69/1

Product Advantage：

24V DC Operation: Suitable for standard industrial control voltage requirements, ensuring seamless compatibility with a broad range of power supplies and control systems.

Precision Planetary Gearbox: Provides high torque output, superior efficiency, and dependable performance with minimal backlash, enabling precise motion control.

Simple 2-Wire Connection: Enables straightforward installation and system integration, reducing setup time and labor expenses.

Compact and Robust Design: Features a space-saving structure constructed from high-quality materials to ensure long-term durability and reliable operation under demanding conditions.

Low Noise and Vibration: Delivers smooth and quiet performance, contributing to an improved working environment.

High Reliability: Supported by Nidec’s established engineering expertise and rigorous quality standards, ensuring consistent and dependable performance in critical applications.

Product Application:

This versatile geared motor is perfectly suited for a wide array of automated systems, including:

Automated Guided Vehicles (AGVs)
Conveyor Systems
Packaging Machinery
Medical and Laboratory Equipment
Material Handling Systems
Robotics and Automation
Printing and Textile Machinery

FAQ

Q1:How do I connect the motor since it only has two wires?

A: The two wires are for DC power input.

Connect the positive (+) wire to the positive terminal of your 24V DC power supply.
Connect the negative (-) wire to the negative terminal.
To change the motor's rotation direction, simply reverse these connections (swap the positive and negative wires).

Q2:What are the key specifications of the Nidec 402 743 24V DC Geared Motor?

A: The Nidec 402 743 is a high-performance, right-angle DC geared motor. Key specifications include:

Voltage: 24V DC
Motor Type: Permanent Magnet DC Motor
Gear Type: Spur gear, right-angle configuration
Output Shaft: Solid shaft designed for reliable torque transmission.
Leads: Two pre-attached power leads for simple connection.

Q3:The motor is getting warm during operation. Is this normal?

A: It is normal for a DC motor to become warm to the touch during continuous operation, especially under load. However, if the motor becomes too hot to touch or you smell burning, this indicates a problem. Common causes are:
