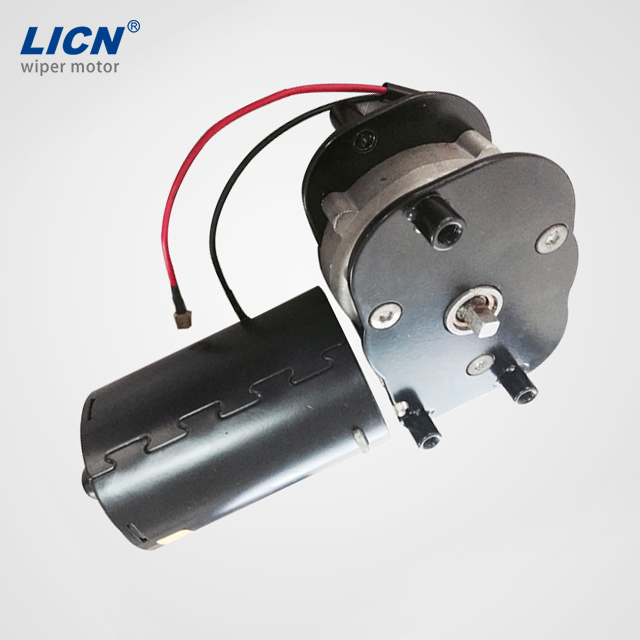

LC-ZD1033
| Availability: | |
|---|---|
| Quantity: | |
Model | CLM-12V (12V DC) | CLM-24V (24V DC) |
Rated Voltage | 12V DC (±10%) | 24V DC (±10%) |
Power | 80W | 80W |
Max Torque | 40Nm (50 kg·cm) | 45Nm (100 kg·cm) |
Clutch Type | Electromagnetic | Electromagnetic |
Speed | 35±5RPM | 35±5RPM |
Duty Cycle | Intermittent (S3-30%) | Continuous (S1-100%) |
Protection | IP54 (Dust/Water resistant) | IP54 |
Operating Temp. | -20°C to +80°C | -20°C to +80°C |
| Connector Type | 2-pin waterproof | 2-pin waterproof |
Product Advantage:
1.Dual Voltage Options – Compatible with 12V DC (vehicles) or 24V DC (heavy machinery) systems,it depends on what you choose.We could make the parameters as requirements.
2.High Efficiency – 80W power rating delivers optimal torque (adjustable 30-35 Nm) for frequent start-stop cycles.
3.Compact Design – Space-saving housing for easy integration.
4.Fast response time – Electromagnetic clutch engages in milliseconds.
5.Durable Construction – IP54-rated (dust/water resistant), steel-reinforced gears.
Product Uses
Industrial Use:
1. Conveyor Systems – Controlled start/stop for material handling.
2. Packaging Machines – Precise torque control for sealing/cutting.
3. CNC & Robotics – Accurate positioning with instant clutch response.
4. Printing Presses – Prevents paper jams with quick disengagement.
1. How to install?
A: Bolt-on mounting, 2-pin wiring (simple plug-and-play).
2. Can these motors handle frequent starts/stops?
A: Yes! The electromagnetic clutch ensures smooth, wear-free operation.
3. Can these motors handle continuous operation?
A: Designed for intermittent use (30% duty cycle). For continuous runs, recommend our 100W series.
