Reliable visibility is a non-negotiable safety requirement for any vehicle, but the electrical and mechanical architecture driving that visibility varies significantly depending on the application. Selecting the wrong wiper system—whether for a commercial fleet, heavy machinery, or a custom build—leads to electrical overloads, mechanical linkage failures, or inadequate performance in variable weather conditions. You cannot simply swap components without evaluating the existing electrical infrastructure. A mismatched motor compromises operational safety and introduces severe diagnostic headaches for maintenance teams. Whether you are wiring a marine center console or upgrading an agricultural tractor cab, understanding the baseline mechanics prevents costly downtime. Deciding between a single-speed vs dual-speed wiper motor requires a technical understanding of internal brush configurations, wiring harness compatibility, and operational environments. This guide breaks down the engineering differences to inform a reliable, compliance-driven purchasing decision.
Internal Architecture: Single-speed motors typically utilize a two-brush internal design, whereas dual-speed models rely on a three-brush system to alter magnetic fields and rotational speed.
Wiring and Linkage Complexity: Upgrading to a dual-speed system requires specific multi-pin connectors and compatible switches; mechanical linkage connections often differ fundamentally between the two types.
Application Suitability: Single-speed units excel in predictable, low-variation environments (e.g., enclosed agricultural cabs), while dual-speed units are baseline requirements for highway-speed vehicles and commercial transit facing dynamic weather.
Sourcing Considerations: When procuring from an OEM wiper motor manufacturer, matching the motor’s torque rating and electrical draw to the existing vehicle architecture is more critical than simply maximizing speed options.
A standard DC wiper motor relies on fundamental electromagnetic principles to generate rotational force. Permanent magnets line the interior of the motor housing. A central armature, wrapped in copper wire windings, sits between these magnets. When electrical current passes through the windings, it creates an electromagnetic field. This field pushes against the permanent magnets, forcing the armature to spin.
The commutator and carbon brushes manage this electrical delivery. The commutator is a segmented copper cylinder attached to the armature shaft. Carbon brushes press physically against the commutator. They transfer direct current from the vehicle's battery into the spinning armature. As the armature rotates, the brushes continuously contact different commutator segments. This rapid switching maintains the magnetic repulsion necessary for continuous rotation.
To understand the electrical flow during operation, mechanics trace the current through these specific stages:
The operator activates the dash switch, sending 12V or 24V power through the primary wiring harness.
Current enters the motor housing and travels down the braided copper shunt wire attached to the positive carbon brush.
The positive brush transfers the current into the copper segments of the commutator.
Current flows through the armature windings, creating the electromagnetic field that drives rotation.
The current exits the armature through the negative brush, grounding out to the motor casing or a dedicated ground wire.
Wiper systems also require an internal park switch. This mechanism ensures the wiper blades return to the bottom of the windshield when the driver turns the switch off. The park switch utilizes a mechanical cam located inside the motor's reduction gearbox. A set of electrical contacts rides on this cam. When the driver cuts power at the dash, the motor continues to draw current through a dedicated park circuit. Once the cam reaches a specific rotational degree, it physically breaks the contact. The motor stops instantly, parking the blades in the correct resting position.

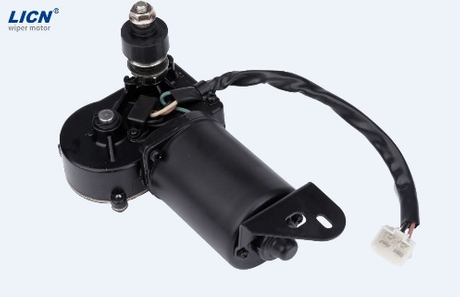

Single-speed units prioritize mechanical simplicity. They utilize a standard two-brush internal configuration. One carbon brush supplies positive voltage, while the other provides the ground path. This straightforward design delivers a constant, unvarying rotational speed directly proportional to the input voltage.
The wiring harness requirements remain minimal. Most single-speed units connect via a single 2-pin or 3-pin plug. The basic circuit requires one wire for continuous power, one for the park circuit, and a chassis ground. Installers rarely need complex relays to operate these units. The mechanical linkage connection also reflects this simplicity. Single-speed motors typically feature a straightforward, single-plane rotational output shaft. They drive basic crank arms without the need for complex, multi-axis linkage geometries.
When bench-testing a single-speed unit, technicians only need a basic 12V power supply. Applying positive voltage to the main power pin and grounding the casing will immediately spin the motor at its maximum rated RPM. This makes field diagnostics incredibly straightforward compared to multi-circuit systems.
These motors dominate controlled or low-speed environments. Agricultural tractors, golf carts, and basic marine vessels rely heavily on single-speed architectures. Operators in these vehicles do not face the rapid weather changes associated with highway driving. A single, consistent wipe speed provides adequate visibility.
Reduced electrical complexity directly enhances durability. A heavy-duty wiper motor with a two-brush design contains fewer failure points. Fewer internal components mean less friction, lower heat generation, and extended operational lifespans in harsh, dusty environments. Heavy equipment operators prefer this setup because field repairs require basic hand tools and a simple multimeter.
Secondary applications also benefit from this design. Custom fabricators, robotics engineers, and DIY builders frequently source single-speed units. These projects require high-torque, easily wired motors. The standard two-brush design provides reliable mechanical force without the burden of complex speed control circuitry.
Fixed-speed wiping introduces operational risks in dynamic weather. Sudden, heavy downpours overwhelm a single-speed system. The fixed sweep rate cannot clear large volumes of water fast enough to maintain safe visibility at higher vehicle speeds. This limitation restricts their use on modern road-going vehicles.
Modern intermittent delay modules rarely integrate smoothly with basic single-speed units. Adding a variable delay requires complex aftermarket modifications. Installers must splice external timer relays into the primary power circuit. This process often disrupts the internal park switch functionality, causing the wipers to stop randomly across the glass. Attempting to force a single-speed motor to operate intermittently often leads to premature failure of the internal cam contacts.

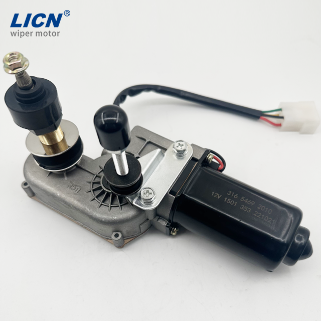

Dual-speed systems rely on a three-brush internal architecture. This design includes one common ground brush, one low-speed positive brush, and an offset high-speed positive brush. The physical placement of these brushes dictates the motor's operational characteristics.
The low-speed brush sits directly opposite the ground brush. This standard 180-degree alignment utilizes the maximum number of armature windings. It generates high torque but limits maximum rotational speed due to back electromotive force (EMF). Back EMF acts as electrical resistance generated by the spinning armature itself. The magnetic field created by the spinning armature pushes back against the incoming current, capping the maximum RPM.
The high-speed brush sits offset, typically at a 60-degree angle from the low-speed brush. Engaging this offset brush changes the current path. The current passes through fewer armature windings. This reduction in active windings significantly lowers the back EMF. With less internal resistance, the armature spins faster. However, this increased speed comes at the cost of a slight torque reduction. The motor sacrifices pulling power to achieve a faster sweep rate.
Wiring complexity increases exponentially with a three-brush system. Visual identification is straightforward. Dual-speed units typically feature two separate double-pin plugs or a dedicated 4-pin to 5-pin harness. The circuit must accommodate separate pathways for low speed, high speed, the park circuit, and ground.
A compatible multi-position dash switch is an absolute necessity. The switch must isolate the electrical pathways. Sending power to both the low-speed and high-speed brushes simultaneously will cause a dead short and destroy the motor. The switch manages the transition, ensuring power flows only to the selected brush while maintaining the integrity of the auto-park circuit.
Installers must use appropriate wire gauges when wiring a dual-speed system. The high-speed circuit draws significantly more amperage than the low-speed circuit. Using undersized wire, such as 18 AWG, will result in voltage drop, sluggish wiper performance, and melted insulation. Automotive electricians standardly use 12 AWG or 14 AWG stranded copper wire for the high-speed pathways to handle the peak current draw safely.
Dual-speed motors serve as the foundation for intermittent wiping systems. A variable-speed wiper motor is rarely a unique mechanical unit. Instead, it is a standard dual-speed motor paired with an external control module.
External relays and delay modules interface exclusively with the low-speed circuit. When the driver selects an intermittent setting, the module sends a brief pulse of power to the low-speed brush. The motor completes one sweep. The internal park switch cuts the power, and the module initiates a countdown timer before sending the next pulse. The high-speed circuit remains entirely separate, reserved only for continuous, rapid operation.
Accurately identifying the current system prevents costly procurement errors. You must audit the existing hardware before ordering replacement parts or planning an electrical upgrade.
Visual inspection begins at the wiring harness. Count the wires exiting the motor housing. A single 2-pin plug indicates a single-speed unit. Multiple plugs or a thick 5-wire harness confirm a dual-speed configuration. Next, inspect the linkage connection points. Single-speed units often utilize single-plane rotational shafts. Dual-speed units frequently employ complex crank arms and ball-joint linkages to manage the increased operational forces.
Troubleshooting requires careful attention to switch-to-motor mismatches. A common field issue involves discovering a single-speed motor improperly wired to a legacy two-speed dash switch. This mismatch causes diagnostic confusion. The switch may function on the "low" setting but act as a kill switch on the "high" setting. Always verify the motor's internal brush count against the switch's output terminals.
Matching the motor's amp draw to the existing fuse block is critical. Wiring gauge must support the maximum potential load to prevent thermal events.
Compare the static load of a single-speed unit against the variable load of a dual-speed wiper motor. A two-brush motor draws a consistent, predictable amperage. A three-brush motor experiences significant peak draws, especially when initiating the high-speed circuit against a dry windshield. Upgrading to a dual-speed unit often requires upsizing the factory fuse and replacing thin-gauge wiring with thicker, heat-resistant copper strands.
Mechanics must also test the ground path. A dual-speed motor pulling high amperage will quickly expose a weak chassis ground. If the wipers move slowly on the high setting but operate normally on the low setting, the ground wire is likely failing under the increased electrical load.
Ensuring physical fitment requires measuring the sweep angle and bolt patterns. You cannot execute a simple drop-in swap between single and dual-speed units.

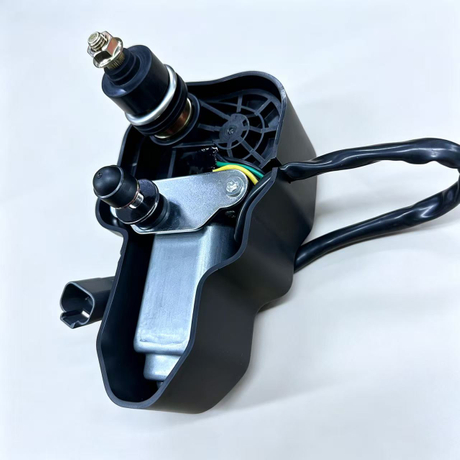

The physical footprint of a three-brush motor is generally larger. The housing must accommodate the offset brush and additional internal wiring. Linkage attachment points differ fundamentally. The crank arm length dictates the sweep angle of the wiper blades across the glass. Installing a dual-speed motor with an incorrect crank arm will cause the blades to strike the A-pillars or park directly in the driver's line of sight. You must measure the center-to-center distance of the original crank arm and match it exactly to the replacement unit.
Engineers must weigh safety benefits against system complexity. High-speed modes provide critical visibility in severe weather. Commercial transit and highway vehicles demand this capability.
Increased complexity introduces new failure points. A three-brush system relies on multi-position switches, external relays, and complex wiring harnesses. Each connection represents a potential point of corrosion or mechanical failure. In enclosed agricultural cabs or underground mining equipment, the reliability of a simple two-brush system often outweighs the need for a high-speed sweep. Dust, mud, and constant vibration destroy complex relay blocks much faster than they degrade a direct-wired single-speed motor.
Securing consistent quality requires vetting your supply chain. Warranty support and engineering documentation separate reputable suppliers from generic aftermarket vendors.
When evaluating a wiper motor manufacturer, look for specific industrial credentials. ISO certifications guarantee consistent assembly processes. Ingress protection (IP) ratings are mandatory for heavy-duty applications. An IP67 rating ensures the motor housing resists dust and temporary water immersion. Prioritize manufacturers with custom linkage engineering capabilities. They can match the motor's torque output to your specific windshield dimensions.
Technical Specification | Single-Speed Motor | Dual-Speed Motor |
|---|---|---|
Brush Configuration | Two brushes (Positive, Ground) | Three brushes (Low, High, Ground) |
Wiring Complexity | Low (2 to 3 wires) | High (4 to 5 wires) |
Torque Output Profile | High, consistent torque across all operations | High on low speed; reduced torque on high speed |
Intermittent Capability | Requires complex aftermarket relays; prone to park failure | Easily integrates with standard OEM delay modules |
Ideal Application Environment | Agriculture, marine, low-speed industrial, mining | Highway transit, commercial fleets, automotive |
Average Amp Draw (12V System) | 3A to 5A continuous | 4A low speed / 7A+ high speed peak |
Attempting to wire a dual-speed motor to a single-speed switch introduces severe electrical risks. Installers frequently bridge the low and high-speed terminals to force operation. This results in a dead short, immediate fuse failure, or the complete loss of the auto-park function.
Mitigate this risk by mapping the wiring diagram meticulously before installation. Never route full amperage directly through a legacy dash switch. Utilize dedicated automotive relays, such as standard 5-pin Bosch-style relays, for high-current pathways. The dash switch should only trigger the low-amperage side of the relay (pins 85 and 86). The relay then handles the heavy current draw from the battery directly to the motor brushes (pins 30 and 87). This protects the switch contacts from melting under sustained load.
Automotive electrical forums frequently discuss a dangerous wiring hack. Users claim they can unlock a hyper-fast third speed on a standard dual-speed motor.
This myth involves miswiring the unit to bypass internal resistance. Users feed full battery voltage simultaneously to both the low-speed and high-speed positive brushes while manipulating the ground path. Warn your technicians against this practice. Overvolting the standard brush configuration destroys the commutator. The excessive current generates massive heat, leading to rapid thermal failure, melted solder joints, and complete motor burnout. Always adhere to the wiring schematics provided by your OEM wiper motor supplier.
Audit your current vehicle wiring harnesses with a multimeter to confirm the number of active circuits before ordering replacement units.
Verify dash switch amp ratings to ensure the new motor will not overload legacy electrical contacts during high-speed operation.
Request detailed torque and amp-draw specification sheets from your supplier to accurately match the motor to your existing fuse block.
Measure the physical linkage attachment points and crank arm length to guarantee the new motor achieves the correct windshield sweep angle.
A: Inspect the wiring plug configuration. A single-speed motor typically features a single 2-pin or 3-pin plug. A dual-speed motor utilizes multiple plugs or a thicker 4-pin to 5-pin connector. Additionally, dual-speed motors generally have a slightly larger physical housing to accommodate the third brush.
A: Yes, but it requires isolating one of the speed circuits. You can wire the switch to operate only the low-speed or high-speed brush. However, this defeats the purpose of purchasing a dual-speed motor and often complicates the auto-park wiring integration.
A: Common failures include a burnt-out high-speed carbon brush, a faulty multi-position dash switch, or a blown relay on the high-speed circuit. A switch-to-motor mismatch installed by a previous owner can also restrict the motor to a single speed.
A: Mechanically, they are usually the exact same unit. The motor itself is a standard dual-speed device. The variable or intermittent aspect is controlled entirely by an external electronic delay module that pulses power to the low-speed circuit.
A: The third brush acts as the high-speed circuit. It is physically offset from the standard positive and ground brushes. This offset position engages fewer copper windings on the armature, reducing electrical resistance and allowing the motor to spin faster.
