| Quantity: | |
|---|---|

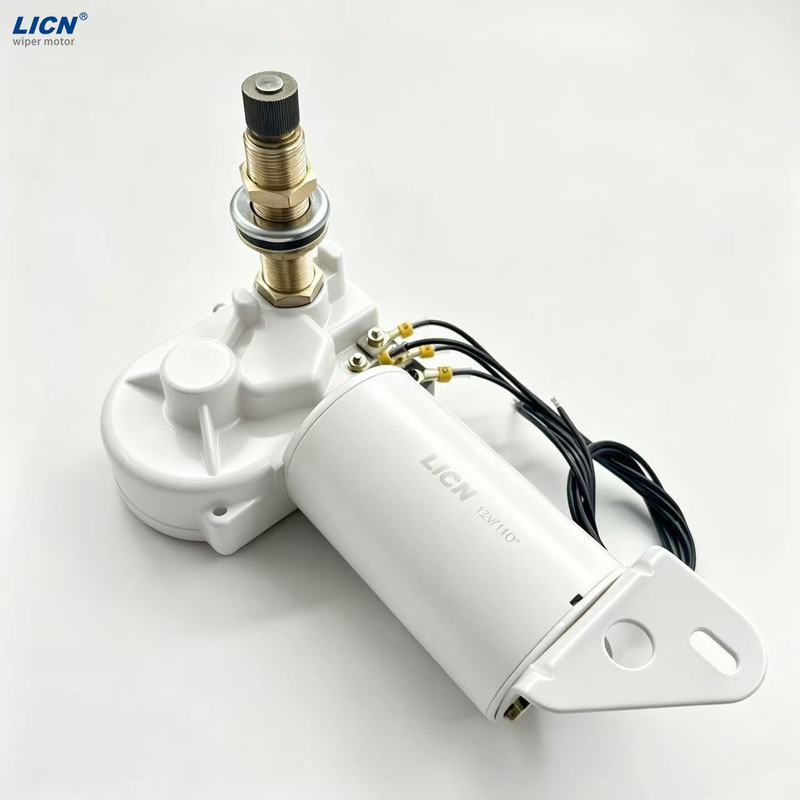

Dual Voltage Options – Available in 12V and 24V models to suit all marine electrical systems
Multiple Shaft Lengths – Choose from 1″, 2″, or 3″ shaft lengths to fit your specific windshield and mounting requirements
Customizable Sweep Angle – Sweep angle adjustable to your specific needs; factory pre-set options available with easy field adjustment

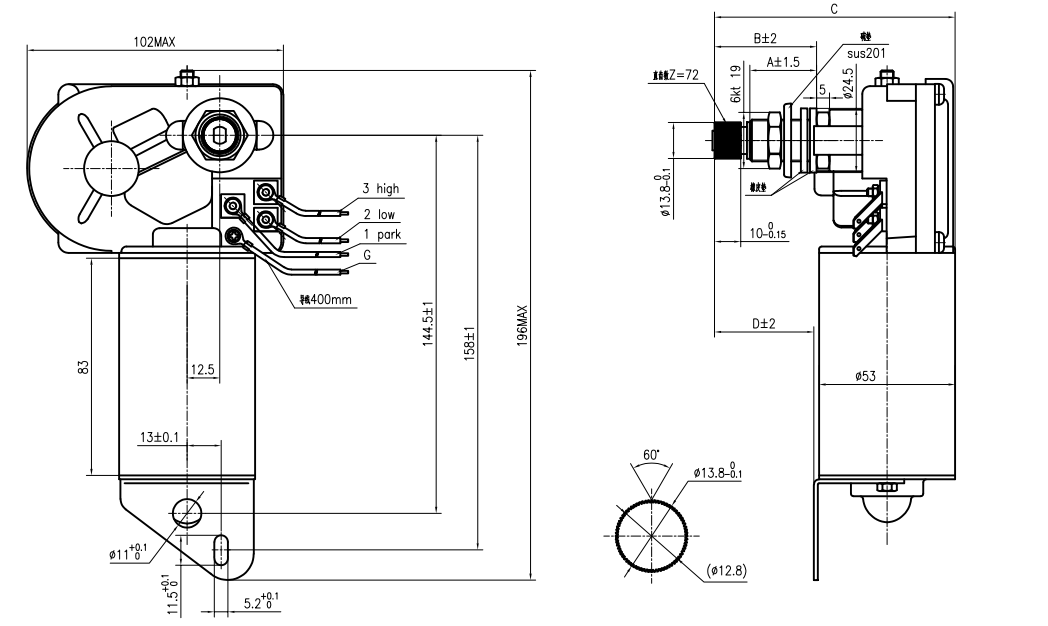

| Parameter | Specification |
|---|---|
| Voltage | 12V DC / 24V DC |
| Shaft Length | 1″ / 2″ / 3″ (custom lengths available upon request) |
| Shaft Diameter | 1/2″ (standard) |
| Sweep Angle | Customizable – please specify your required angle |
| Speed | Dual-speed (low/high) |
| Housing | Corrosion-resistant aluminum with powder-coated finish |
| Driveshaft | Stainless steel |
| Parking | Self-parking, adjustable left or right |
| Protection | Weather-sealed / waterproof design |
| Mounting | Bulkhead mount with stainless steel mounting bracket |
| Item | OEM NO. | Voltage | Sweep Angel | Shaft Size（mm） | Shaft Size（in） | Color | Picture |
| 1 | 4R1.12.R110CE | 12V | 110° | 38mm | 1.5" | Black |  |
| 2 | 4R1.12.R110CEB | 12V | 110° | 38mm | 1.5" | Black | |
| 3 | 4R1.24.R110CE | 24V | 110° | 38mm | 1.5" | Black | |
| 4 | 4R1.24.R110CEB | 24V | 110° | 38mm | 1.5" | Black | |
| 5 | 4R2.12.R110CE | 12V | 110° | 64mm | 2.5" | Black | |
| 6 | 4R2.12.R110CEB | 12V | 110° | 64mm | 2.5" | Black | |
| 7 | 4R2.24.R110CE | 24V | 110° | 64mm | 2.5" | Black | |
| 8 | 4R2.24.R110CEB | 24V | 110° | 64mm | 2.5" | Black |
We understand that every vessel has unique requirements. That's why we offer:
Custom Sweep Angles – Tell us your required wipe angle, and we will configure the motor accordingly
Shaft Length Selection – Choose from 1″, 2″, or 3″ to match your windshield depth and arm configuration
Park Position – Pre-set to left or right parking as specified
Voltage – 12V or 24V to match your vessel's electrical system
Self-Parking Function – Coast-to-park circuitry with adjustable left or right parking position for a clean, streamlined appearance
Corrosion-Resistant Construction – Stainless steel driveshaft with durable metal or powder-coated aluminum housing for long service life in saltwater environments
Waterproof/Weather-Sealed – Fully sealed design to withstand harsh marine conditions, rain, and salt spray
RF Shielded Circuitry – Prevents interference with other sensitive onboard electronics
Easy Installation – Color-coded wiring for high speed, low speed, park, and ground simplifies setup
Insulated Grounding – Suitable for installation on all hull types, including steel, aluminum, wood, and GRP boats
Ideal for a wide range of marine vessels, including:
Recreational Boats – Powerboats, sailboats, yachts, and cruisers
Commercial Vessels – Fishing boats, workboats, tugboats, and ferries
Military & Government Craft – Patrol boats, rescue vessels, and utility craft
Wheelhouse & Deckhouse Windows – Suitable for both pilothouse and exterior helm stations
