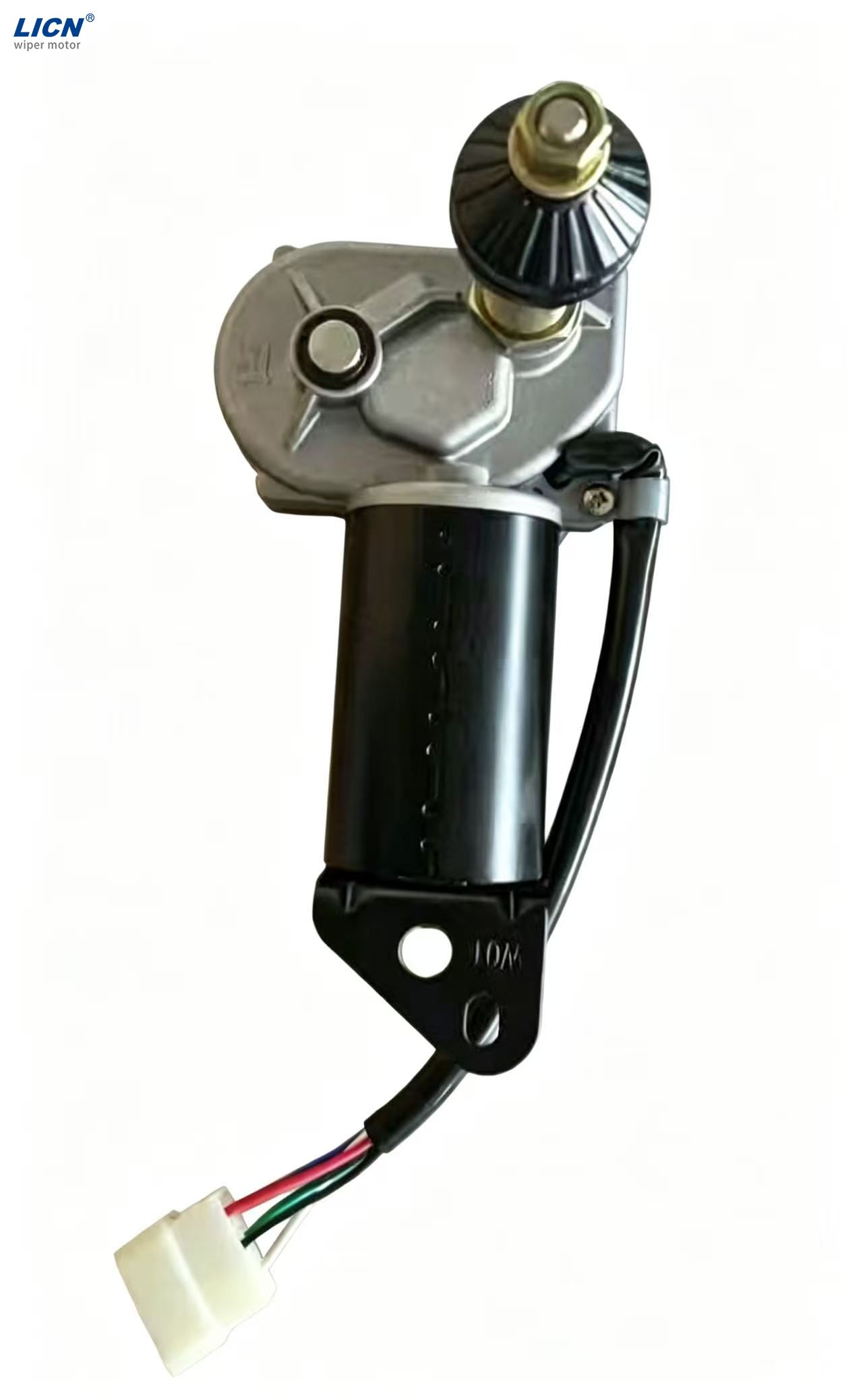

Heavy-Duty Wiper Motor for Low-Speed Specialty Vehicles | 65°–165° Adjustable Sweep Angle

LCZD39.01W

Product Introduction:
High-Performance, Adjustable Wiper Motors Designed for Low-Speed Specialty Vehicles — Including Sightseeing Buses, Golf Carts, Construction Equipment, and Scenic Shuttle Vehicles

Seeking a robust, precision-engineered wiper motor optimized for reliable operation across low-speed specialty vehicles? Our purpose-built wiper motor is rigorously tested and validated for use in sightseeing buses, golf carts, construction machinery, scenic shuttle vehicles, and similar applications. Featuring an adjustable sweep angle ranging from 65° to 165°, it ensures consistent, unobstructed visibility under diverse environmental conditions—including rain, snow, mud, and airborne dust—thereby enhancing operational safety for both drivers and passengers.

Model:
LCZD39.01W

Availability:

Quantity:



Inquire Add to Basket

Wiper Motor motor customized motor factory angle slow

Product Description

FAQ

Why choose us?

Introduction

Adjustable Sweep Angle (65°–165°) — Flexible wiper coverage to match different windshield sizes and vehicle types. One motor model covers multiple applications, reducing your inventory and sourcing complexity.

Heavy-Duty Construction — Built with high-quality copper coils, precision gears, and rugged housing to withstand vibration, dust, moisture, and temperature extremes commonly found in outdoor and industrial environments.

Powerful & Stable Performance — High torque output ensures smooth, consistent wiper operation even under heavy rain or snow loads. No stalling, no skipping.

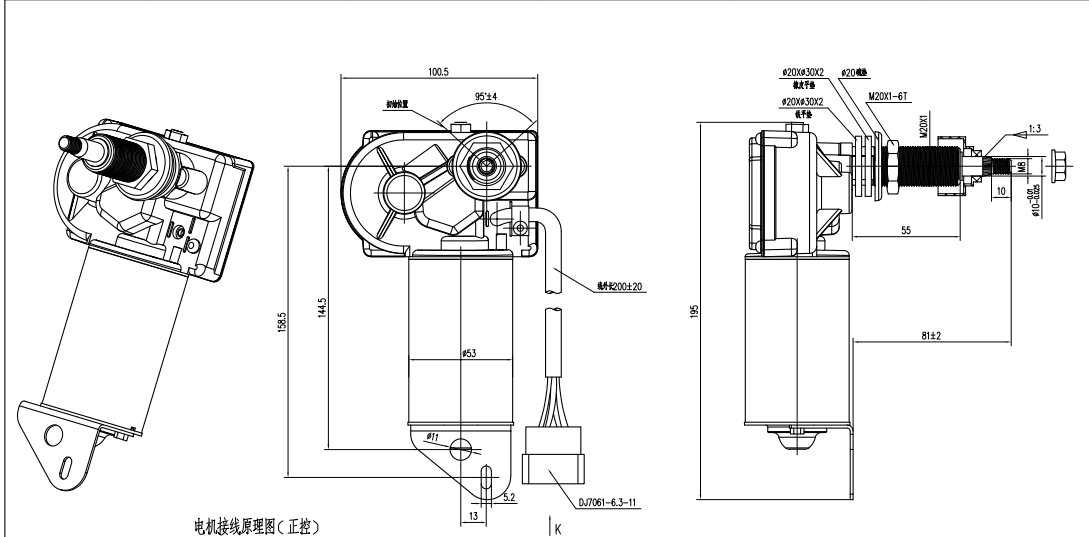

motor drawing

Technical Specifications (Typical):

Parameter	Specification
Rated Voltage	12V / 24V / 48V DC
Sweep Angle	65°–165° (adjustable)
Torque	High-torque output
Speed	Single or dual speed options
Protection	IP-rated waterproof & dustproof
Operating Temp	-30°C to +70°C
Application	Low-speed specialty vehicles

Applications:

Sightseeing buses & tourist vehicles
Golf carts & club cars
Construction & engineering machinery
Scenic area shuttle buses
Utility vehicles & low-speed EVs
Agricultural & industrial specialty vehicles

Key Features & Benefits

Low Noise & Low Power Consumption — Designed for quiet operation and energy efficiency, ideal for electric golf carts and battery-powered shuttle vehicles.

Easy Installation & Wide Compatibility — Standard mounting interface compatible with most low-speed specialty vehicle wiper systems. Simple wiring, quick retrofit.

IP-Rated Protection — Waterproof and dustproof sealing for reliable performance in harsh outdoor conditions.

Custom Options Available — Voltage (12V/24V/48V), shaft length, connector type, and mounting bracket can be customized to meet your specific vehicle requirements.

FAQ

Q1: What is the sweep angle range of this wiper motor?

The motor supports an adjustable sweep angle from 65° to 165°, covering the full range required by different windshield sizes and vehicle body types. Factory preset options are available, and field adjustment is supported for fine-tuning after installation.

Q2: Does the motor come with wiper arm and blade?

Wiper arms and blades are available as separate accessories or as a complete kit depending on your order configuration. We offer adjustable wiper arms (11–14 inches) and wiper blades (11–22 inches) to match different windshield sizes. Please specify your windshield dimensions when ordering so we can recommend the right combination.

Q3: The wiper only works at low speed but not high speed. What is the problem?

This is typically caused by: (1) An open circuit in the high-speed wiring; (2) A defective control switch; (3) A stuck brush in the motor; or (4) A blown low-speed torque limiting resistor. Check the switch and wiring harness first — if both are intact, the motor may need internal inspection or replacement.

Why Choose Our Wiper Motors?

✅ Factory-direct pricing with strict quality control
✅ OEM & ODM services available
✅ CE / RoHS compliant
✅ Fast sample delivery & bulk order support
✅ Professional technical support for vehicle manufacturers and distributors

Our Manufacturing Commitment

LICN is a specialized manufacturer based in China’s heartland of auto parts, Ruian, Zhejiang. We are dedicated to the research, development, and production of high-performance automotive motors. Our state-of-the-art facility is equipped with advanced testing equipment, and every unit undergoes strict quality control inspections before leaving our factory. We are not just a supplier; we are your strategic partner for quality, reliability, and growth in the automotive aftermarket.

Contact Us for a Bulk Quote or Customization Inquiry

Ready to experience the perfect blend of quality, value, and service? Contact our expert team today for a personalized quote or to discuss your customization needs.

WhatsApp: +8618814981806
Tel: +86-577-65217866
Phone: +86-15858858012
Email: sales@china-liancheng.cn
Address: Nanhe Industrial Zone, Tangxia Town, Ruian, Zhejiang Province, China

Order now and equip your Land Rover with a wiper motor built to perform, designed to last, and backed by a manufacturer you can trust.
